Store Loader and Attachments

CAUTION:

W14000
W14000-UN-05OCT88

W00267
W00267-UN-27NOV91

W23529
W23529-UN-21MAY13

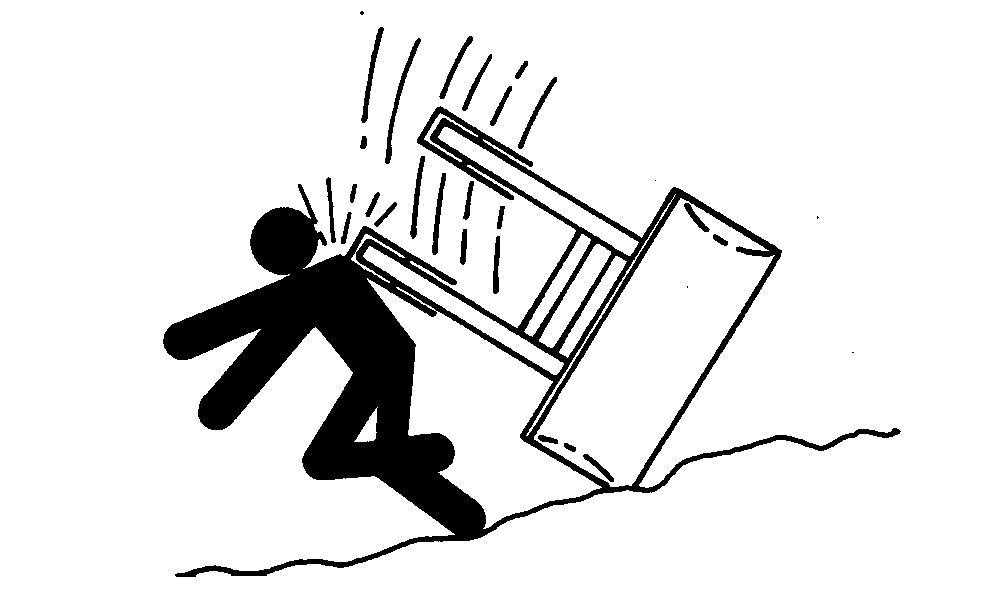

Detached loader can fall and cause serious injury or death. Securely store loader with bucket or attachment attached to prevent falling. Keep playing children and bystanders away from storage area.

NOTE: Loader may be stored attached or detached (if equipped with optional parking stands), from tractor.

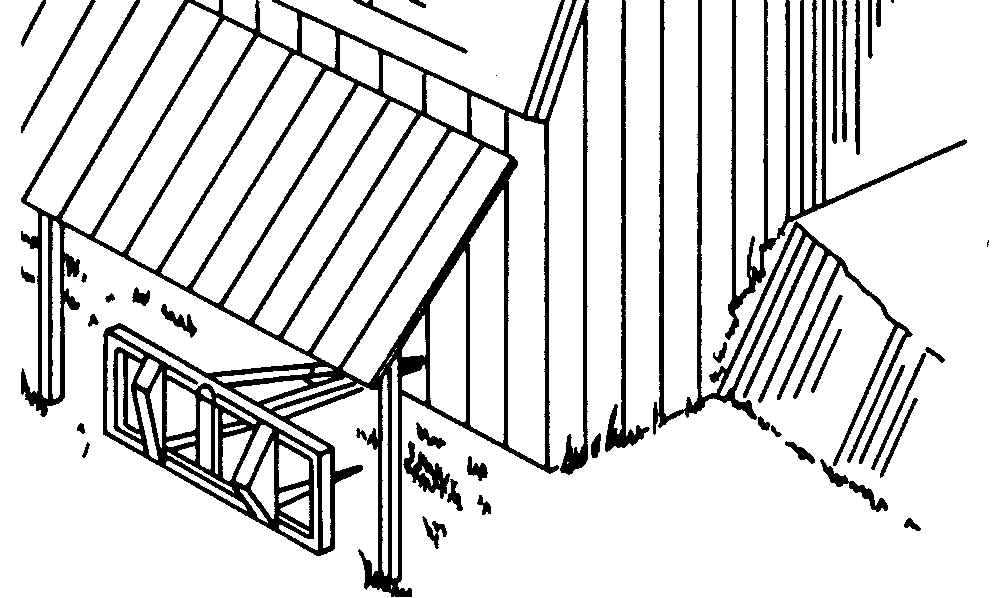

Store loader in a dry, protected place. If stored outside, cover with a waterproof material.

Retract all hydraulic cylinders, if possible. If not, apply grease to any exposed cylinder rods to prevent rust from forming.

CAUTION: To help prevent personal injury from exposed fork tines, always store bale fork with tines pointed down, or against bale, building or other stable object.

For detached loader (if equipped with optional parking stands):

  • Park and detach loader in dry and protected place. (Refer to DETACH LOADER (IF EQUIPPED WITH OPTIONAL PARKING STANDS) in Operate Loader section.)

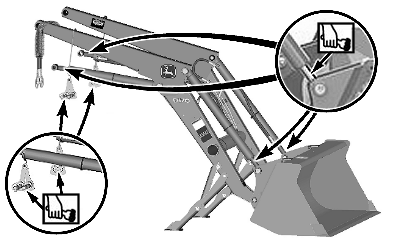

  • Store hoses on right-hand boom.
  • Store pivot pins on hooks on both sides.
  • Apply grease to all exposed cylinder rods and pivot pins to prevent rust from forming.

OUO6038,00021BB-19-20130708
