Every 50 Hours

Tighten Loader and Hood Guard Hardware

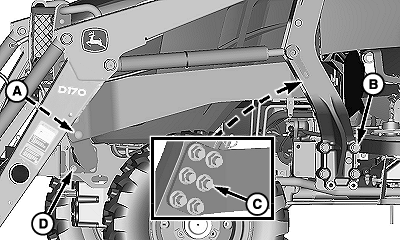

W23370-UN-16MAY13

Left-Hand Side Shown

A - M16 Hardware (4 per side)

B - M16 Hardware (4 per side)

C - M20 Hardware (6 per side)

D - M12 Hardware (4 per side)

Tighten hardware (A—D) on both sides to specifications.

Item	Measurement	Specification
M12 Hardware (D)	Torque	270 N•m (199 lb-ft.)
M16 Hardware (A and B)	Torque	275 N•m (203 lb-ft.)
M20 Hardware (C)	Torque	530 N•m (391 lb-ft.)

Check Transmission/Hydraulic Oil Level

1. Cycle all cylinders three or four times.

2. Retract bucket cylinders completely and lower loader to ground.

3. Shut off tractor engine and remove key.

4. Check transmission/hydraulic oil level. (See your tractor Operator’s Manual).
