Every Two Years

W23371
W23371-UN-17MAY13

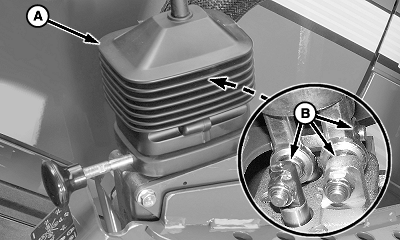

A - Boot

B - Ball Joints

Lubricate bearings on single lever ICV:

  1. Remove boot (A) and slide up shaft.

  2. Apply grease liberally to the outside surface of each ball joint (B). Move lever in all directions to ensure lubricant penetrates ball joints.

  3. Install boot.

OUO6038,00021E7-19-20130605
