Identifying Hose Connections

CAUTION:

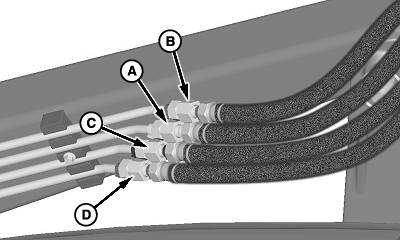

W23756
W23756-UN-21MAY13

Loader Hose Connections (Two-Function Shown)

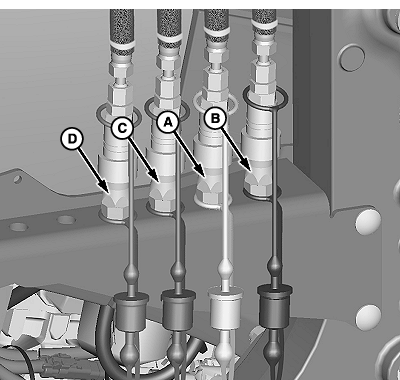

W23753
W23753-UN-28MAY13

Couplers (Mast-Mounted)

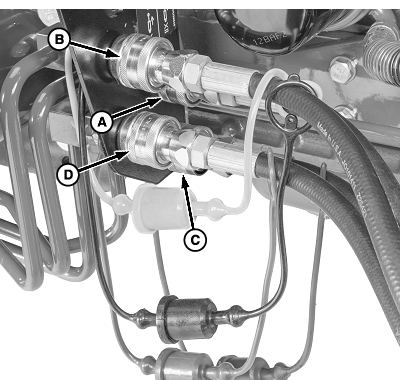

W23758
W23758-UN-28MAY13

Couplers (Mid-Mount)

A - Hose, Bucket Cylinder—Head End (Yellow)

B - Hose, Bucket Cylinder—Rod End (Black)

C - Hose, Lift Cylinder—Head End (Blue)

D - Hose, Lift Cylinder—Rod End (Red)

Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected as shown.

NOTE: Hoses are identified by color-coded tie bands near each fitting and color-coded caps on end of each hose.

Color identifies hydraulic function.

OUO6038,00021EE-19-20130605
