Round Bale Handling Capacities
CAUTION:

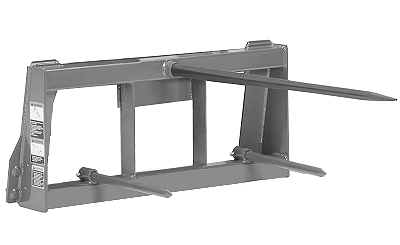

W23845-UN-23JUL13
Bale Spear
W23846-UN-04SEP13
Hay Grapple

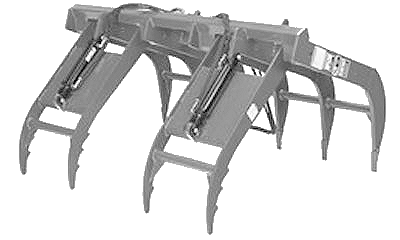

W23847-UN-04SEP13
Root Grapple
Handling bales that exceed rollback capacity rating may cause relief valve to open and loader to dump if attachment is dumped below 0° horizontal.NOTE: Rollback values are the minimum calculated value between fully dumped to level bucket with the loader raised.
Specifications based on loader installed on 4R Series tractor.
|
Single Bale Spear—D170 Loader |
|||
|
Lift Capacity |
|||
|
Bale Size Diameter x Length mm (in.) |
Bale Orientation |
||
|
From End kg (lbs.) |
From Side kg (lbs.) |
Standing Up kg (lbs.) |
|
|
1219 x 1219 (48 x 48) |
884 (1945) |
— |
— |
|
Rollback Capacity |
|||
|
1219 x 1219 (48 x 48) |
1463 (3219) |
— |
— |
|
Hay Fork with Grapple and Root Grapple |
kg (lbs.) |
||
|
Lift Capacity |
884 (1945) |
||
|
Rollback Capacity |
1463 (3219) |
||
Round Bale Sizes and Weights
|
Round Bale Sizes and Weights |
||
|---|---|---|
|
Bale Size Diameter x Length mm (in.) |
Maximum Weight kg (lbs.) |
Material |
|
1219 x 1219 (48 x 48) |
341 (750) |
Dry Hay |
|
1524 x 1219 (60 x 48) |
499 (1100) |
Dry Hay |
|
1524 x 1219 (60 x 48) |
795 (1750) |
Silage |
|
1524 x 1524 (60 x 60) |
658 (1450) |
Dry Hay |
|
1829 x 1219 (72 x 48) |
729 (1650) |
Dry Hay |
|
1829 x 1219 (72 x 48) |
999 (2200) |
Silage |
|
1829 x 1524 (72 x 60) |
999 (2200) |
Dry Hay |
|
OUO6064,0000DFE-19-20130905 |
