Using Ballast Box

W09416-UN-09APR08

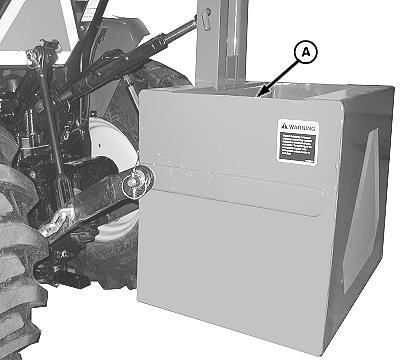

A - Ballast Box

CAUTION: To help prevent bodily injury or death from tractor rollover, add required amount of ballast to tractor. (See Preparing the Tractor section.)

See Preparing the Tractor section for proper ballasting of tractor for loader operation.

Use ballast box (A) in the rear-most position (approximately 610 mm [24 in.] off the ground).
