Set Front Tread Width

W05777
W05777-UN-09DEC02

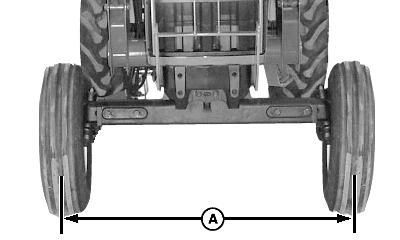

A - Tread Width

Set the front tread width (A) to at least 1600 mm (63 in). Wider settings can be used. Do not exceed the maximum width recommended in the tractor Operator's Manual for loaders. Use the same tread width on the front and rear tires whenever possible. (See Select Rear Tread Width in this section.)

See the tractor Operator's Manual for more information.

OUO6064,00008CE-19-20180828
