Lock Out Multi-Function Lever—Early Version

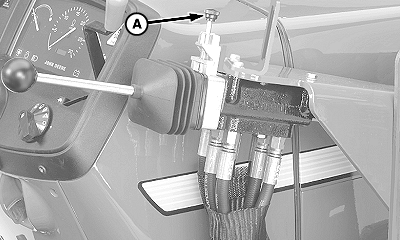

Single-lever independent control valve shown. Refer to the tractor Operator's Manual for the factory-installed multi-function lever.

W06468
W06468-UN-14NOV03

A - Knob

Multi-function lever operation can be locked out to prevent unintentional movement.

  • To engage the lock, twist the knob (A).
  • Pull up and twist the knob (A) to unlock.

OUO6064,0000F8A-19-20180827
