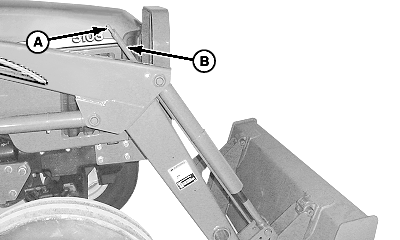

Level Bucket with Bucket Level Indicator (If Equipped)
W06876-UN-16JUN04
A - Rod
B - Tube
The top of the bucket is flat to help the operator to determine that the bucket is level.The bucket level indicator allows the operator to see when the bucket or attachment is level. Bucket or attachment is level when the top of the rod (A) is flush with the tube (B).
The indicator position for a bucket is not the same as for an attachment.
When using the level indicator for an attachment other than a bucket: Level the attachment and put a new mark on the rod at the top of the tube.
|
