Detach the Bucket or Attachment

W04245
W04245-UN-04JUN01

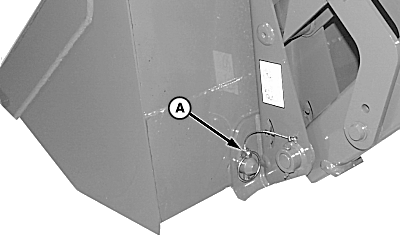

A - Quick-Lock Pin

The detaching procedure is the same for all attachments. Bucket attachment shown.

  1. Retract bucket cylinders and raise the loader approximately 460 mm (18 in) from the ground.

  2. Place the transmission in PARK and shut off the engine.

  3. Remove the quick-lock pin (A) from each side of the bucket.

  4. W05783
    W05783-UN-09DEC02

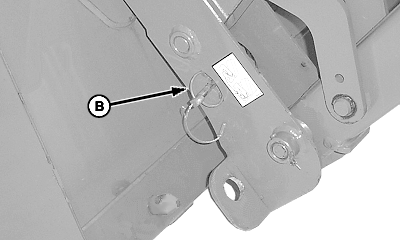

    B - Storage Position

    Store pins in the storage position (B).


  5. W09750
    W09750-UN-11AUG08

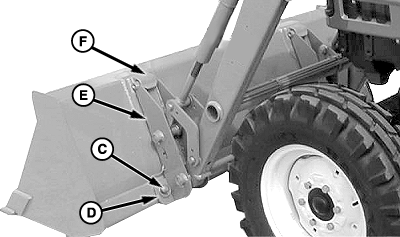

    C - Bucket Pin

    D - Strap

    E - Carrier

    F - Hook

    Extend bucket cylinders until the pin (C) releases from the strap (D) on each side of the bucket.


  6. Lower the loader, carrier (E) releases from the hook (F) on each side of the bucket. Place the transmission in REVERSE and move away from the bucket.
