Lubricate and Maintain Loader Safely

E50093
E50093-UN-08AUG01

W01151
W01151-UN-12AUG93

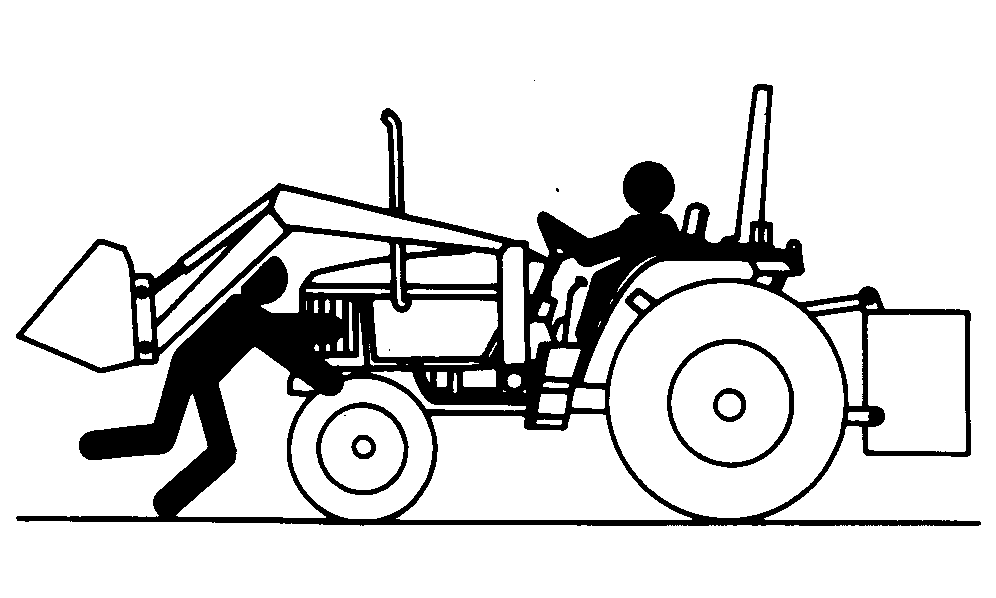

Prevent possible injury from an accidental lowering of the loader. DO NOT perform service around the front of the tractor with the loader elevated and unsupported. Before lubricating or servicing the loader or tractor, perform the following:

  1. Engage the park brake or place the transmission in PARK.
  2. Lower the loader to the ground.

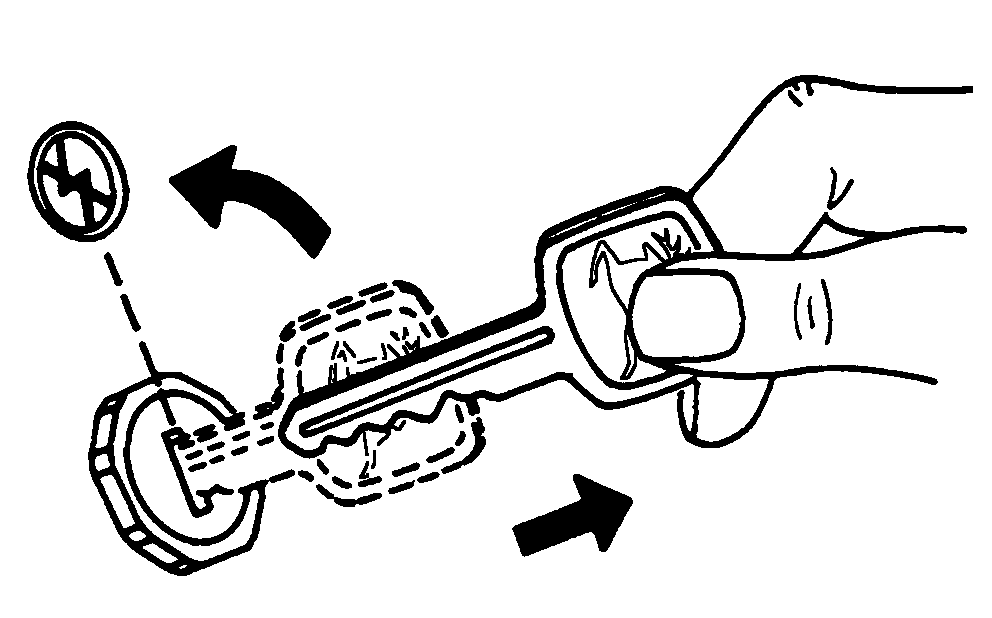

  3. Shut off engine and remove ignition key.
  4. Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

OUO6064,0000F97-19-20180827
