Tighten Hydraulic Fittings and Hoses

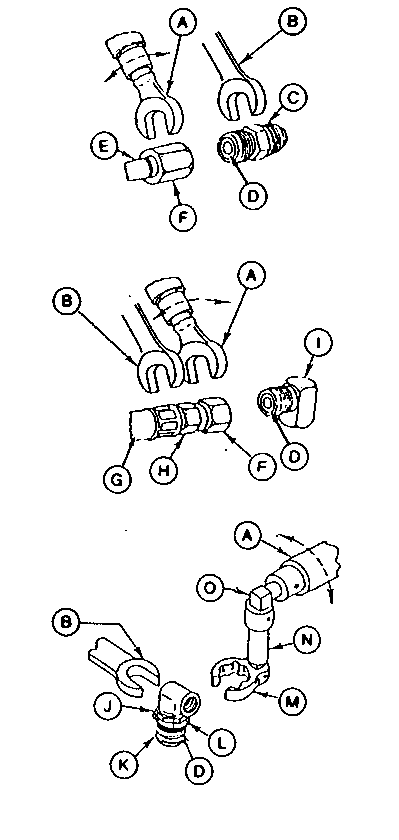

W28401-UN-26MAR18

A - Torque Wrench

B - Open-End Wrench

C - Union

D - O-Ring

E - Metal Line

F - Swivel Nut

G - Hose Connection

H - Back-Up Nut

I - Fitting

J - Jam Nut

K - Angle Fitting

L - Washer

M - Crowfoot

N - Extension

O - Drive

Kinking or twisting the hoses during installation shortens the hose life. Be sure to follow the proper procedure.

Tighten the fitting or nut to the torque value shown. Use one wrench to hold the body and one to tighten the nut.

For some hose fittings, the use of three wrenches is required to prevent twisting, one on the body, one on the nut, and one on the hose fitting.

Flat Face O-Ring Seal
9/16-18 Fitting	Torque	24 N·m (212 lb·in)
13/16-16 Fitting	Torque	46 N·m (34 lb·ft)
