Select Rear Tread Width

Prevent possible injury or death from a machine rollover. To maximize stability, use the widest distance from the tire center-to-tire center. (See Add Ballast to Hitch in this section.) Use particular care when operating on inclines or rough terrain.

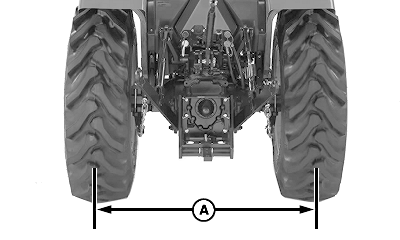

W05688-UN-09SEP02

A - Tread Width

Set the rear tread width (A) to at least 1675 mm (66 in). Refer to the tractor Operator's Manual for more information.
