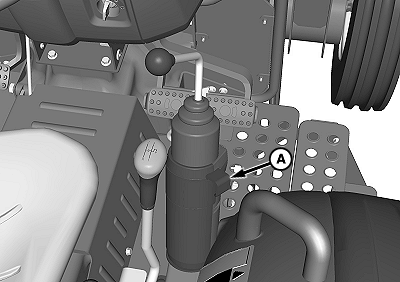

Lock Out Multi-Function Lever—Tractors with a Mid-Mount Control Valve

W26239
W26239-UN-22JUL14

A - Transport Lock Slide Control

Multi-function lever operation can be locked out to prevent unintentional movement.

  • To engage the lock, push in the transport lock slide control (A).
  • Pull out the transport lock slide control (A) to unlock.

OUO6064,0001216-19-20180827
