Loader Specifications on 5103, 5203, 5303, 5403, and 5220 Tractors

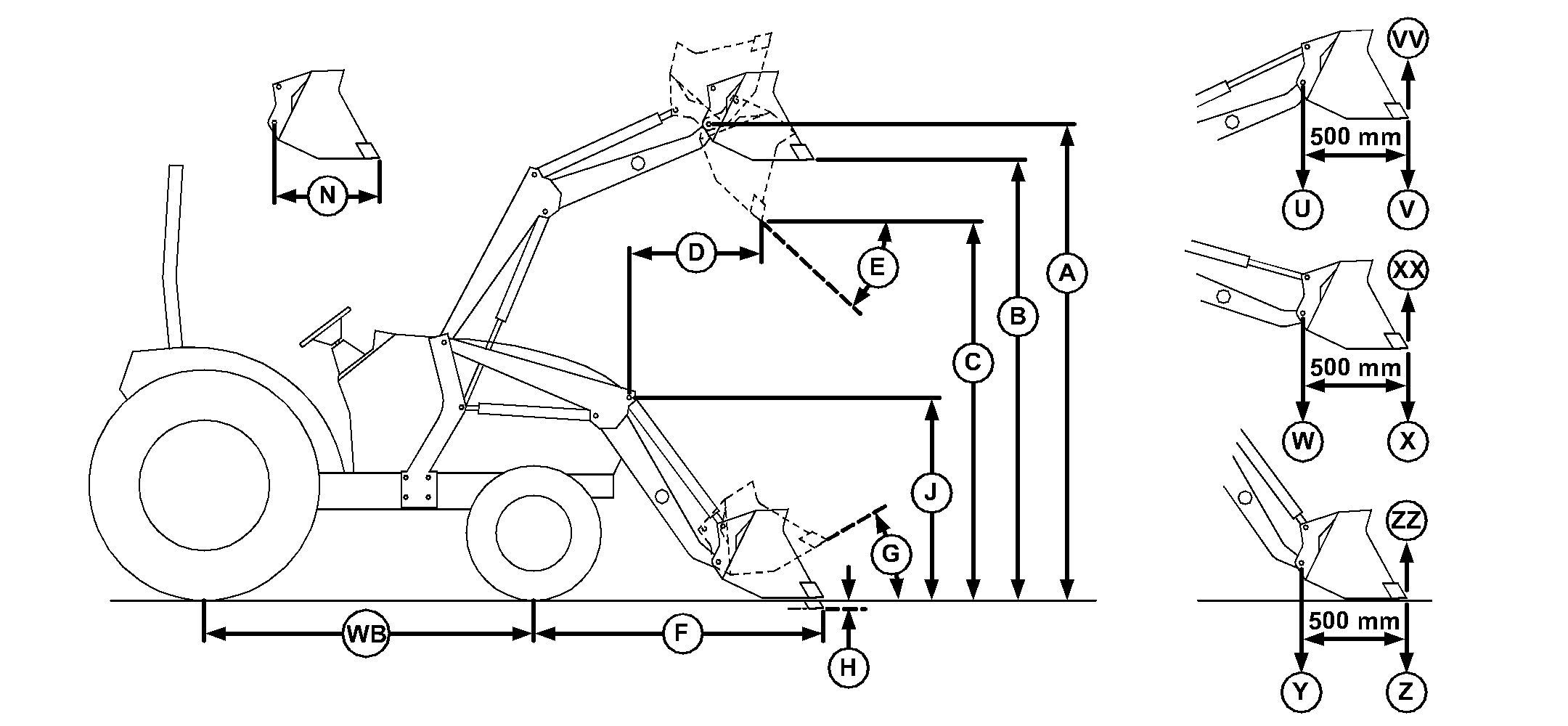

W23754-UN-30MAY13

5103, 5203, 5303, 5403, and 5220 Tractors1
Minimum Rear Ballast	Option 1	335 kg (740 lb) ballast per wheel with no hitch ballast
	Option 2	150 kg (330 lb) ballast per wheel and 300 kg (660 lb) of hitch ballast
	Option 3	75 kg (165 lb) ballast per wheel and 600 kg (1325 lb) of hitch ballast
Front Tires	7.5-16
Rear Tires	13.6-28
Wheelbase	2060 mm (81 in)
Materials Bucket
Width	1850 mm (73 in)
Length	633 mm (25 in)
Hydraulic System
Rated Flow	43 L/min (11.4 gal/min)
Maximum Pressure	19 498 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	3.66
Loader Lower Time	2.47
Bucket Dump Time	3.40
Bucket Rollback Time	2.29
Lift Height (Maximum)
To Pivot Pin (A)	2850 mm (112 in)
Clearance
Bucket Level (B)	2605 mm (102.5 in)
Bucket Dumped (C)	2140 mm (84 in)
Overall Length (WB+F)	3790 (149 in)
Digging Depth (H)	180 mm (7 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	615 mm (24 in)
Bucket on Ground with Bucket Leveled (F)	1730 mm (68 in)
Angles (Maximum)
Dump (E)	43°
Dump at Ground	114°
Rollback (G)	30°
Overall Height
In Carry Position (J)	1442 mm (57 in)
Lift Capacity
To Maximum Height (U) at Pivot Point	1000 kg (2200 lb)
To Maximum Height (V)	682 kg (1500 lb)
To 1500 mm (59 in) at the pivot pin (W)	1380 kg (3043 lb)
To 1500 mm (59 in) (X)	980 kg (2161 lb)
Breakout Force
At Pivot Point (Y)	19 800 N (4451 lbf)
500 mm forward of the pivot point (Z)	13 100 N (2944 lbf)
Bucket Rollback Force
At maximum height (VV)	9600 N (2158 lbf)
At 1500 mm (59 in) lift height (XX)	13 780 N (3118 lbf)
At Ground Level Line (ZZ)	13 830 N (3109 lbf)
