Every 50 Hours

Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten Mounting Frame Hardware—All Except 5105, 5205, 5D, and 5E Series Tractors

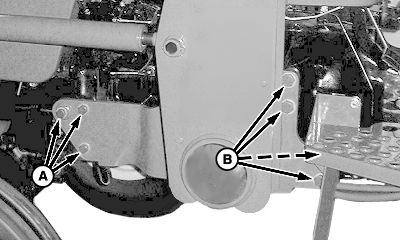

W06450-UN-12JAN04

Left-Hand Side Shown

A - Hardware, M16

B - Hardware, M20

Tighten hardware (A and B) to specifications.

Hardware (A), M16	Torque	275 N·m (203 lb.-ft.)
Hardware (B), M20	Torque	530 N·m (390 lb.-ft.)

Tighten Mounting Frame Hardware—5105, 5205, and 5D Series Tractors

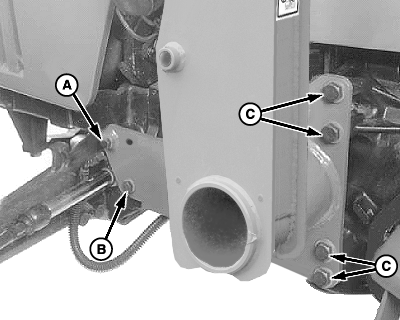

W22898-UN-06AUG12

Left-Hand Side Shown

A - Hardware, M16

B - Hardware, M20

C - Hardware, M16

Tighten hardware (A, B and C) to specifications.

Hardware (A and C), M16	Torque	275 N·m (203 lb.-ft.)
Hardware (B), M20	Torque	530 N·m (390 lb.-ft.)

Tighten Mounting Frame Hardware—5E (T3) Series Tractors

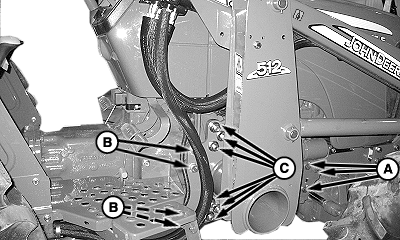

W22782-UN-02AUG12

Right-Hand Side Shown

A - Hardware, M16

B - Hardware, M20

C - Flange Nut, M20

Tighten all hardware (A, B, and C) to specifications.

Hardware (A), M16	Torque	275 N·m (203 lb.-ft.)
Hardware (B), M20	Torque	530 N·m (390 lb.-ft.)
Hardware (C), M20	Torque	675 N·m (498 lb.-ft.)

Tighten Mounting Frame Hardware—5E (FT4) Series Tractors

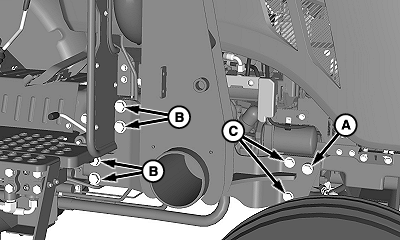

W26240-UN-22JUL14

Right-Hand Side Shown

A - Hardware, M16

B - Hardware, M20

C - Hardware, M16

Tighten hardware (A—C) to specifications.

Hardware (A and C), M16	Torque	275 N·m (203 lb.-ft.)
Hardware (B), M20	Torque	530 N·m (390 lb.-ft.)
