Operate Loader with Multi-Function Lever

Single-lever independent control valve shown. Refer to the tractor Operator's Manual for information on the factory-installed multi-function lever.

W03253
W03253-UN-17FEB99

Operate the loader from the operator’s seat only. Remain at controls until the operating cycle is complete.

Prevent possible injury caused by an unintentional lowering of the loader. DO NOT use the FLOAT position to lower the loader. Loss of control results and the loader falls to the ground due to its own weight.

Refer to symbols on labels near the multi-function lever.

Lever returns to the NEUTRAL position by itself from all positions except FLOAT. To release from the FLOAT position, pull back or down on the lever.

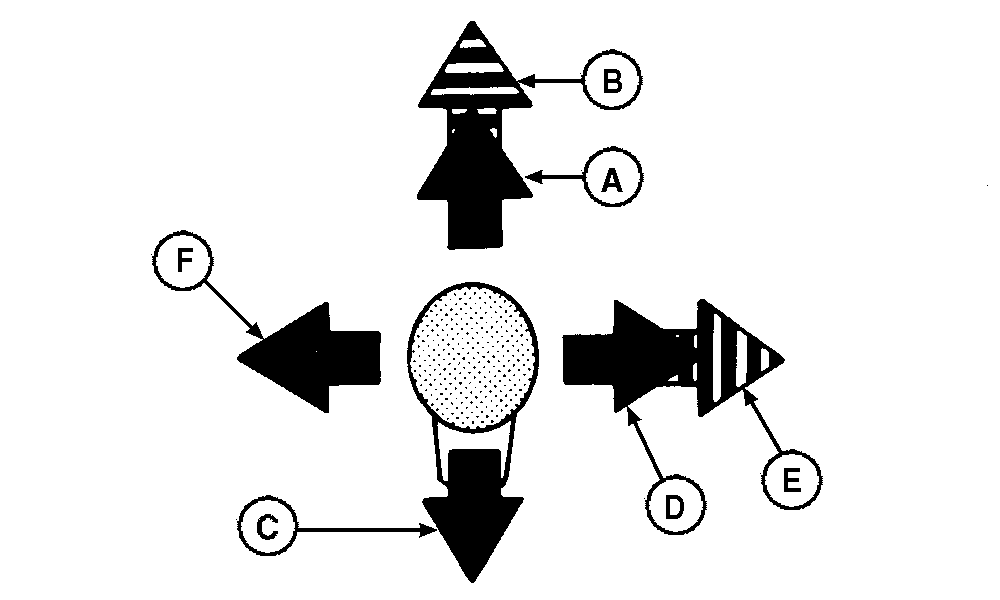

Key

Lever Movement

Loader Operation

A

Forward or Up

Boom Lower

B

Full Forward or Up (Detent)

Boom Float

C

Back or Down

Boom Raise

D

Right-Hand Side

Bucket Dump

E

Full Right-Hand Side1

Bucket Fast Dump

F

Left-Hand Side

Bucket Roll Back

Oil flow limitations cannot allow the operator to do two loader operations at one time, such as RAISE and ROLL BACK. The operation that requires the least hydraulic force moves first.

To relieve the hydraulic system pressure, operate the hydraulic control after stopping the engine.

Multi-function lever has a transport lock. (See Lock Out Multi-Function Lever in this section.)

1 Extra effort is required to move the lever to the full right-hand position. (Bucket cylinder force is reduced in the Bucket Fast Dump. Use it only for dumping materials.)
