Lock Out Multi-Function Lever—Later Version

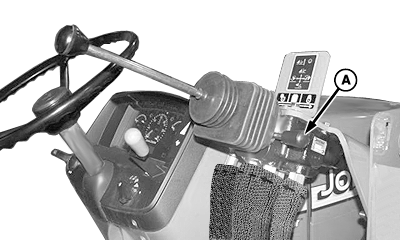

Single-lever independent control valve shown. Refer to the tractor Operator's Manual for the factory-installed multi-function lever.

W26421
W26421-UN-29OCT14

A - Knob

Multi-function lever operation can be locked out to prevent unintentional movement.

  • To engage the lock, pull out the knob (A).
  • Push in the knob (A) to unlock.

OUO6064,0001307-19-20180827
