Detach Loader (If Equipped with Parking Stands)

1. Prevent possible injury caused by a falling or shifting loader. Always detach the loader on a hard, level surface. Loader MUST be equipped with a bucket and parking stands.


   W14000-UN-05OCT88


   W03145-UN-23OCT98

   Be sure that the loader is equipped with a materials bucket.

---




2. Remove the ballast box, if equipped. (See Remove Ballast Box in this section.)

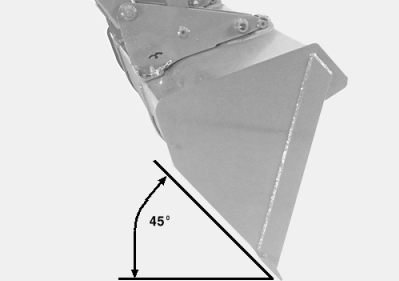

3. Dump the bucket approximately 45° as shown.

4. Lower the bucket to the ground, applying slight down-pressure. DO NOT raise the front tires off the ground.

5. Place the transmission in PARK and shut off the engine.

6.

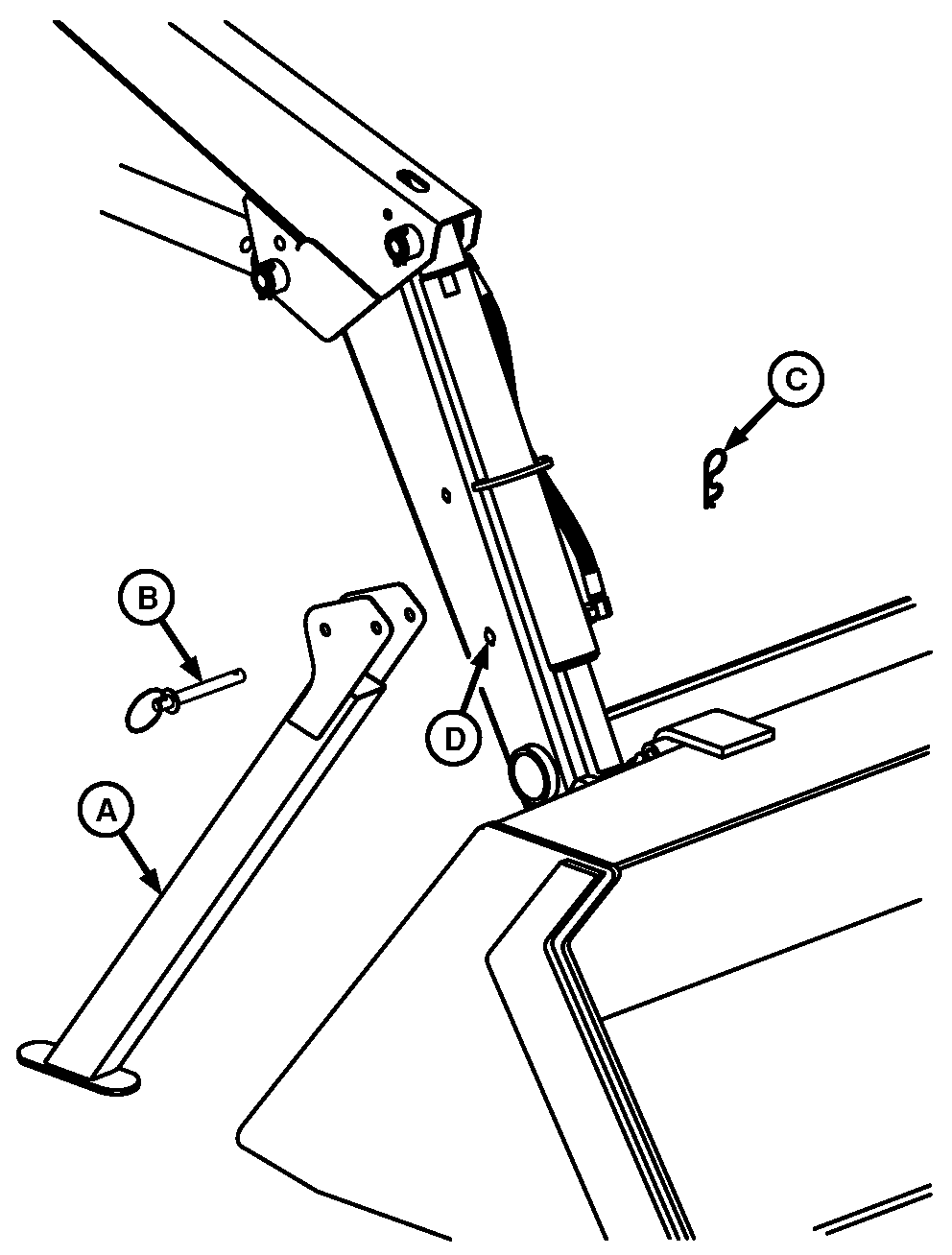

   W05843-UN-17FEB03

   A - Parking Stand

   B - Pin

   C - Spring Pin

   D - Hole Location

   Install parking stands on BOTH sides of the loader. The right-hand side is shown. Use boards under parking stands to prevent the loader from sinking in soft ground.

   Attach the parking stand (A) using pin (B) and spring pin (C) through the hole (D).

---




7. Place the transmission in NEUTRAL.

8. Raise the loader and roll back the bucket until parking stands contact the ground and pressure is removed from loader mast pins.

9. Place the transmission in PARK and shut off the engine.

10. Prevent possible injury from falling lift cylinders. Secure the lift cylinder to the loader boom using straps or wire before removing pins.

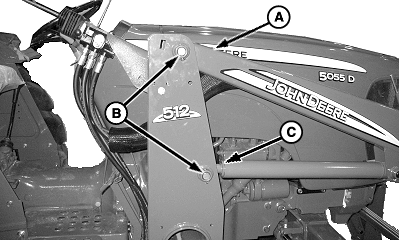

    W09742-UN-05AUG08

    A - Loader Boom

    B - Pin (2 each side)

    C - Lift Cylinder

    Wrap the wire or support straps around the loader boom (A) and lift cylinders (C).

---




11. Remove pins (B) from both mounting frames.

12.


    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. See additional information, Avoid High-Pressure Fluids, in the Safety section.

    Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

---




13.

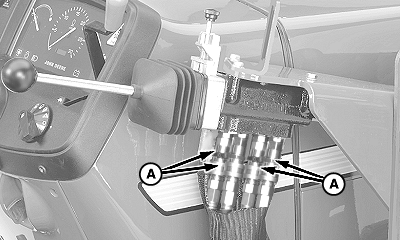

    W09846-UN-29AUG08

    Single-Lever ICV—Early Version (If Equipped)

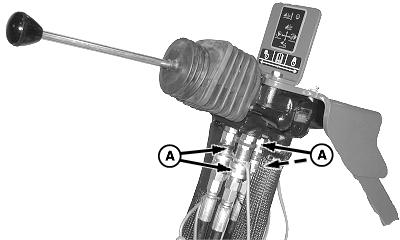

    W09844-UN-29AUG08

    Single-Lever ICV—Later Version (If Equipped)

    A - Hydraulic Hose (4 used)

    Independent control valve couplers: Disconnect loader hydraulic hoses (A) from the ICV.

---




14.

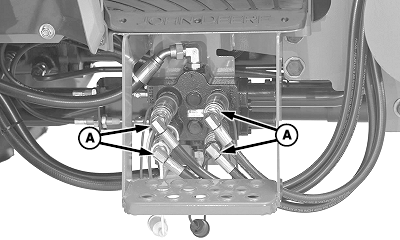

    W08607-UN-02MAY07

    Mid-Mount Valve (If Equipped)

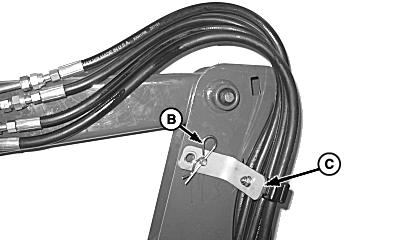

    W09845A-UN-02SEP08

    Hose Bracket

    A - Loader Hose (4 used)

    B - Spring Pin

    C - Hose Bracket

    Mid-mount couplers: Disconnect loader hoses (A) from the valve.

---




15. Remove the spring pin (B) and hose bracket (C) from the mast.
