Identifying Hose Connections—Loader to Mid-Mount Couplers

Prevent possible injury caused by an unexpected loader movement. Anticipated loader movement responds to control levers only if the hoses are connected to the tractor selective control valves as shown.

Safety sleeves removed from the hoses for clarity.

W07024-UN-15SEP04

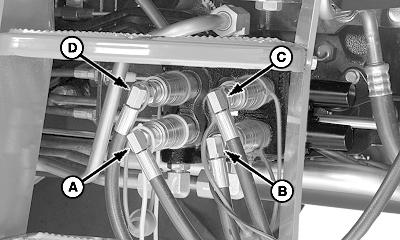

Two-Function Mid-Mount Valve (If Equipped)

W06551-UN-14NOV03

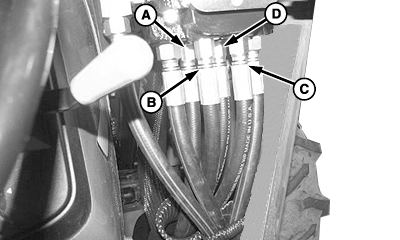

Single-Lever ICV Hoses—Early Version (If Equipped)

W26425-UN-29OCT14

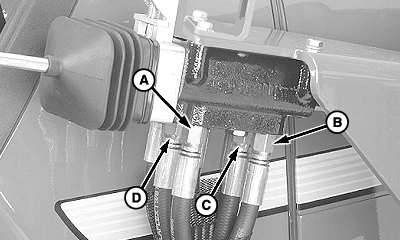

Single-Lever ICV Hoses—Later Version (If Equipped)

W05793-UN-11DEC02

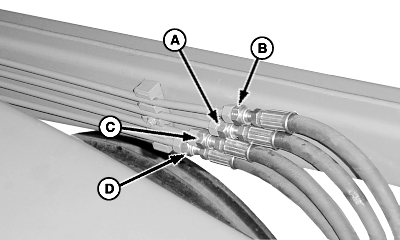

Loader Hoses

Key	Dust Cap Color	Hydraulic Function
A	Yellow	Bucket Cylinder—Head End
B	Black	Bucket Cylinder—Rod End
C	Blue	Lift Cylinder—Head End
D	Red	Lift Cylinder—Rod End
