To the Dealer

IMPORTANT:

W22174
W22174-UN-14FEB12

(A) (Both Booms and Torque Tube)

W22817
W22817-UN-31JUL12

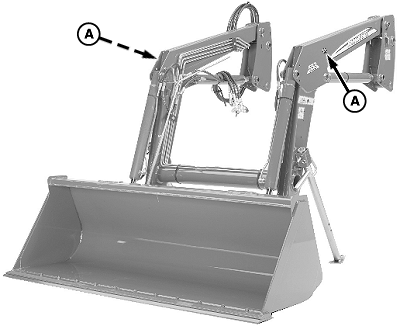

Both Booms

W22816
W22816-UN-29AUG12

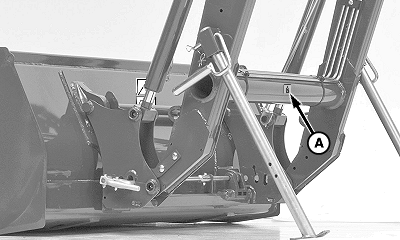

Torque Tube

Ensure decal adhesion. Before applying new decals, clean all dirt, grease, oil, and moisture, and decal remover (if used) from application area. Surface temperature must be greater than 15 °C (60 °F) for best adhesion.

NOTE: Use images to identify decal locations. Perform these steps for each decal replacement:

  1. Remove paper backing from new decal.
  2. Align decal and press one edge of new decal onto loader.
  3. Smooth out air pockets while slowly pressing across decal to opposite edge. Ensure complete decal adhesion.

NOTE: Hoist point decals (A) are required for European CEN countries, but are optional for all other countries.

Inspect condition of hoist decals (A), replace as necessary in locations shown.

OUO6064,00008EB-19-20120731
