Every 10 Hours

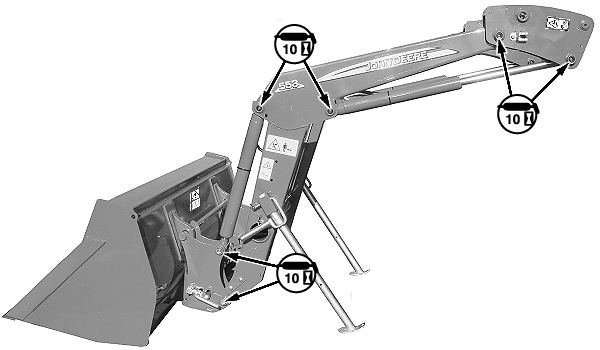

Loader

W22923
W22923-UN-29AUG12

Left-Hand Side Shown

Lubricate twelve fittings, six on each side of loader.

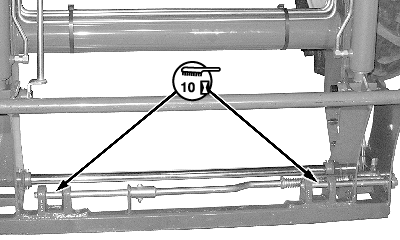

Global Carrier—Latch Pin

W09829
W09829-UN-04SEP08

Clean and lubricate latch pins on both sides of carrier, if equipped. Make sure pins engage properly.

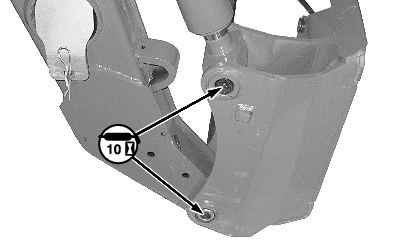

Skid-Steer Attachment Carrier

W20033
W20033-UN-20OCT08

Apply grease to lubrication fittings on both sides.

OUO6064,00008F0-19-20140217
