Identifying Hose Connections—Loader Operated with Mid-Mount Valve

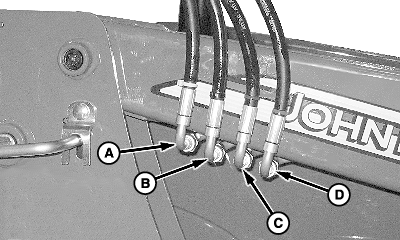

W21212-UN-17NOV10

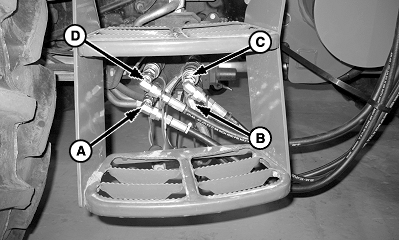

W09684-UN-24JUL08

Mid-Mount Couplers

A - Bucket Cylinder—Head End

B - Bucket Cylinder—Rod End

C - Lift Cylinder—Head End

D - Lift Cylinder—Rod End

CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.

NOTE: Hoses are identified by color-coded tie bands on ends of fittings.

Color identifies hydraulic function.

Key	Tie Band/Plug/Cap Color	Hydraulic Function
A	Yellow	Bucket Cylinder—Head End
B	Black	Bucket Cylinder—Rod End
C	Blue	Lift Cylinder—Head End
D	Red	Lift Cylinder—Rod End
