Identifying Hose Connections—Loader Operated with Single Lever ICV

W21212-UN-17NOV10

W09821-UN-28AUG08

CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to independent control valve as shown.

NOTE: Hoses are identified by color-coded tie bands on ends of fittings.

Color identifies hydraulic function.

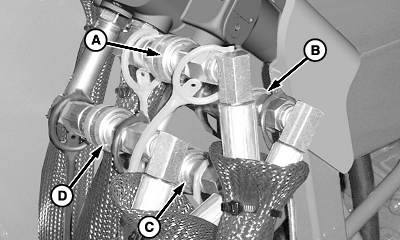

Key	Tie Band/Plug/Cap Color	Hydraulic Function
A	Yellow	Bucket Cylinder—Head End
B	Black	Bucket Cylinder—Rod End
C	Blue	Lift Cylinder—Head End
D	Red	Lift Cylinder—Rod End
