Detaching the Bucket or Attachment

Hydraulic Operated Attachment (Grapple)

1. CAUTION:


   X9811-UN-23AUG88


   W03317-UN-31MAR99

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   Shut off engine.

---

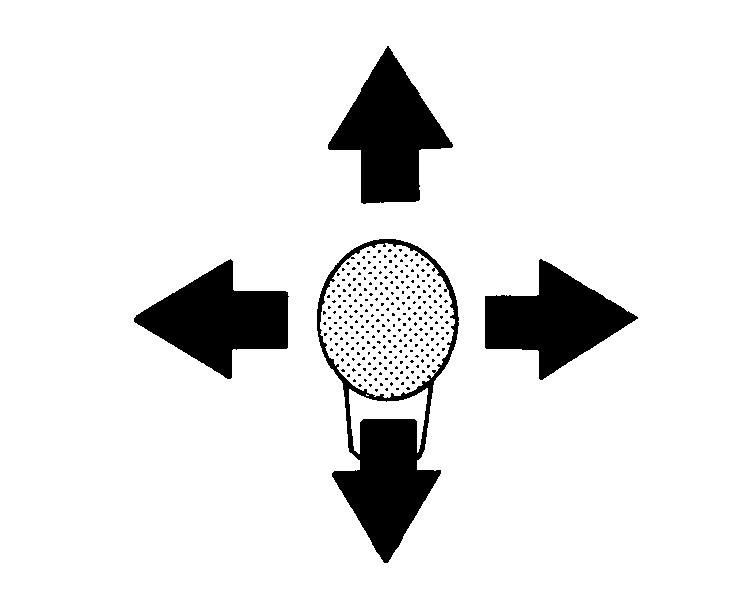

2. Move control lever in all directions several times to relieve system pressure. (See your tractor Operator's Manual.)

3.
   W20038-UN-15OCT08

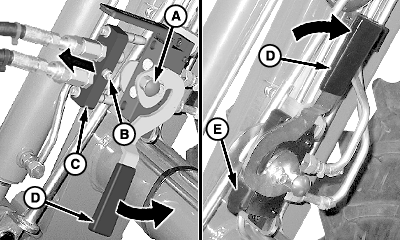

   A - Knob

   B - Pin (1 each side)

   C - Attachment Coupler Half with Hoses

   D - Lever

   E - Cover

   Push in red knob (A) and rotate lever (D) forward to disengage pins (B), separating coupler halves.

---




4. Remove attachment coupler half with hoses (C) from loader coupler.

5. IMPORTANT: Lever (D) must be in the locked (UP) position when attachment coupler half with hoses are removed to avoid interference with tractor components. Cover (E) must also be lowered to protect connection surface of loader coupler half.

   Lower cover (E).

6. Rotate lever (D) around and rearward, locking lever in UP position.

500-Style Carrier

1. NOTE: Procedure is the same for all attachments. Bucket attachment shown.


   W09790-UN-25AUG08


   W22951-UN-29AUG12

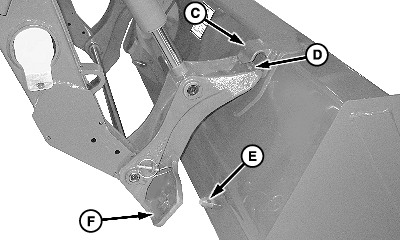

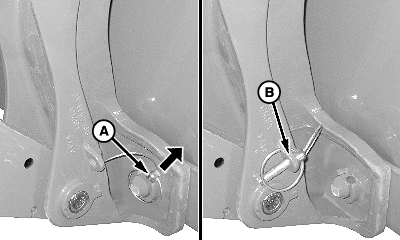

   A - Quick Lock Pin

   B - Storage Position

   C - Hook

   D - Carrier

   E - Bucket Pin

   F - Carrier Strap

   Retract bucket cylinders and raise loader approximately 460 mm (18 in.) from ground.

---




2. Place transmission in PARK and shut off engine.

3. Remove quick lock pin (A) from each side of bucket.

4. Store pins in storage position (B).

5. Extend bucket cylinders until pin (E) releases from carrier strap (F) on each side of bucket.

6. Lower loader, place transmission in REVERSE and move away from bucket. Carrier (D) will release from hook (C) on each side of bucket.

Global Carrier (Manual)

1.
   W09831-UN-04SEP08

   Left-Hand Side


   W22952-UN-29AUG12


   W09833-UN-04SEP08

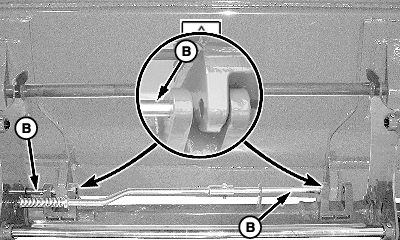

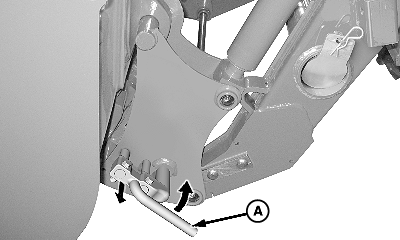

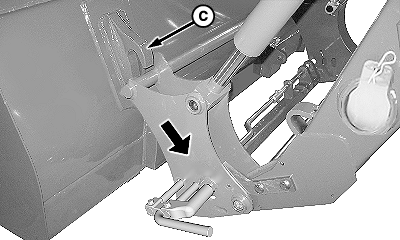

   A - Latch Lever

   B - Pins

   C - Hook (1 each side)

   Raise loader until bucket or attachment is approximately 400 mm (16 in.) from ground.

---




2. Retract bucket cylinders until bucket or attachment rest against carrier to allow movement of latch pin.

3. Place transmission in PARK and shut off engine.

4. Pull latch lever (A) outward, to disengage carrier pins (B) from bucket or attachment, and rotate upward to lock into place.

5. Place transmission in NEUTRAL.

6. Extend bucket cylinders and lower loader until carrier brackets clear hooks (C).

7. Place transmission in REVERSE and back away from bucket or attachment.

8. Retract bucket cylinders to allow latch pin to slide into the locked position.

Skid-Steer Carrier

1.
   W08389-UN-29NOV06

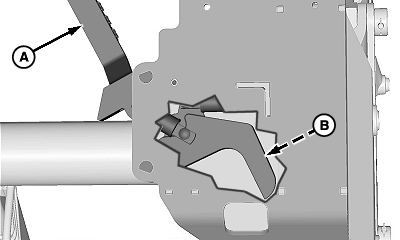

   Left-Hand Lock Pin


   W09864-UN-10SEP08

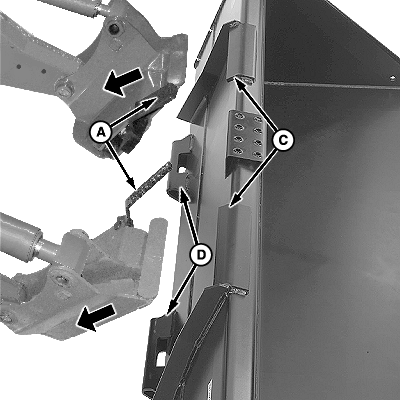

   A - Latch Handles

   B - Lock Pin (1 each side)

   C - Lip

   D - Latches

   Position machine on flat level ground. Level bucket or attachment and lower loader to the ground.

---




2. Place transmission in PARK and shut off engine.

3. IMPORTANT: Make sure both latch handles (A) are up and lock pins (B) are retracted.

   Raise both latch handles (A) to the UP (unlatched) position.

4. Place transmission in NEUTRAL. Extend bucket cylinders until carrier clears bottom latches (D).

5. Place transmission in REVERSE and back away from bucket or attachment.
