Safety Sign Locations

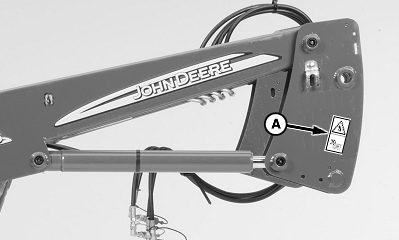

W22899
W22899-UN-10AUG12

Left-Hand Side

W06755
W06755-UN-17MAR04

(A)

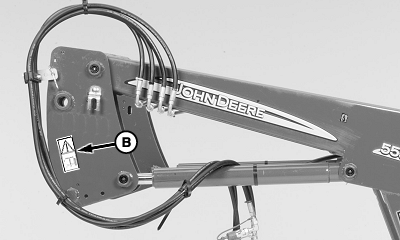

W22900
W22900-UN-10AUG12

Right-Hand Side

W07157
W07157-UN-06DEC04

(B)

(A)—Danger

  • Do not handle round or large square bales.
  • Use ROPS and seatbelt at all times.
  • Add required rear ballast.
  • Move wheels to widest recommended settings.
  • Operate tractor at slow speeds.

(B)—Caution

  • Before servicing, adjusting equipment, or disconnecting oil lines:
    1. Lower loader to ground or support lift arms.
    2. Shut off engine and relieve hydraulic pressure.
  • Observe safety recommendations in Loader Operators Manual.

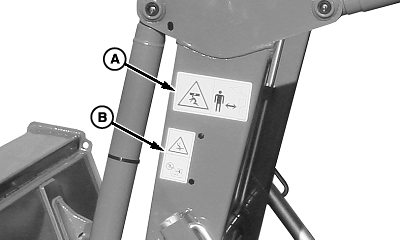

W21259
W21259-UN-17DEC10

Boom

W07158
W07158-UN-06DEC04

(A) Both Frames

W06755
W06755-UN-17MAR04

(B) Both Frames

(A)—Danger Maintain safe distance from raised loader:

  • Never allow anyone to walk or work under a raised loader.
  • Be sure that bystanders are not standing near the machine while operating

(B)—Danger Keep riders off attachment:

  • Do not use loader as a work platform.
  • Do not lift or carry anyone on loader or in bucket or attachment.
  • To avoid injury from falls, do not work from or allow riders on loader or its attachments.

W22796
W22796-UN-23JUL12

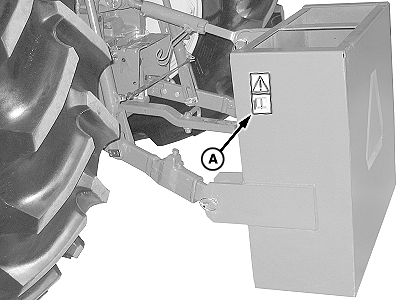

Ballast Box

W07157
W07157-UN-06DEC04

(A)

(A)—Warning Tractor instability or loss of steering control may result if ballast box is installed without loader. To avoid injury do not operate tractor with ballast box unless loader is installed.

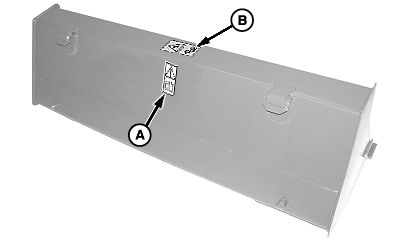

W23715
W23715-UN-30MAY13

Bucket

W07157
W07157-UN-06DEC04

(A)

W06755
W06755-UN-17MAR04

(B)

(A)—Warning To avoid injury or death caused by falling attachment:

  • Quick lock pins must be installed at all times.

(B)—Danger Keep Riders Off Attachment:

  • Do not use loader as a work platform.
  • Do not lift or carry anyone on loader or in bucket or attachment.
  • To avoid injury from falls, do not work from or allow riders on loader or its attachments.

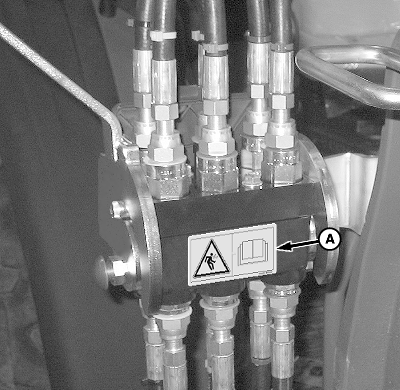

W24710
W24710-UN-14FEB14

Multicoupler

W24460
W24460-UN-24OCT13

(A)

(A)—Warning To avoid injury from rotating handle, release hydraulic pressure before unlatching coupler. See Operator’s Manual for instructions.

OUO6064,0000FCC-19-20140224
