Lock Out Multi-Function Control Lever

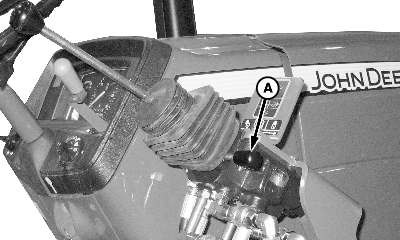

NOTE: Single-lever independent control valve (Option) shown. Refer to tractor Operator's Manual for factory-installed multi-function control lever.

W09712
W09712-UN-06AUG08

A - Knob

Multi-function control lever operation can be locked out to prevent unintentional movement.

  • Pull out knob (A) to engage lock.
  • Push in knob to unlock.

OUO6064,0000FD5-19-20140217
