Attach and Detach Pin-On Bucket (If Equipped)

1. CAUTION:


   W20683-UN-17FEB10


   W20855-UN-04MAY10


   W20856-UN-06OCT10

   A - Bucket Pin

   B - Flat Sides

   C - Spacers (Top pin only, 2 on each pin)

   D - Inside of Bucket Bracket (Flat Edges)

   Avoid injury. Keep hands clear of all moving parts. Use tapered pin or drift to help align holes.

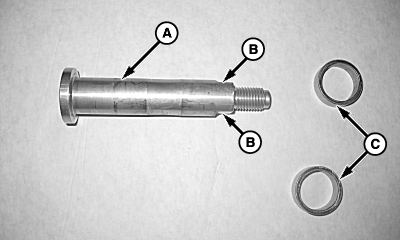

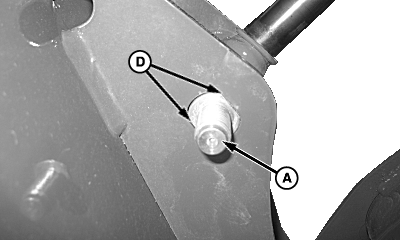

   Bucket pins (A) have two flat sides (B) that must align with inner bucket hole (D). Spacers (C) install on each side of top cylinder rods.

---




2.
   W20788B-UN-05MAY10


   W20857-UN-05MAY10


   W20858-UN-04MAY10

   A - Lower Bucket Pin

   B - Upper Bucket Pin

   C - Spacers (2 each, top pin only)

   D - Flange Nut

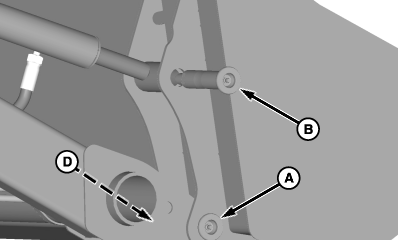

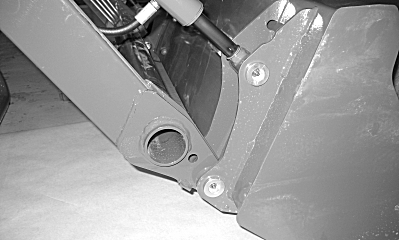

   Position tractor so loader boom aligns with lower pin holes. Engage tractor parking brake and place transmission in PARK. Shut off tractor engine and remove key.

---




3. Install lower bucket pin (A) and flange nut (D).

4. Start tractor. Use loader control to align cylinder rod with upper hole.

5. Shut off tractor engine.

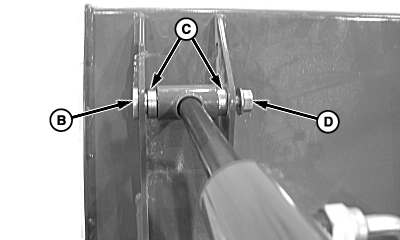

6. Install upper pin (B) with spacers (C) on each side of cylinder rod. Tighten hardware to specification.

   Item	Measurement	Specification
   Flange Nuts	Torque	150 N·m (110 lb.-ft.)

7. Start tractor and verify operation of bucket functions.

8. Detach bucket in reverse order.
