Removing Ballast Box

CAUTION: To prevent personal injury from tractor instability, remove ballast box from hitch before detaching loader.

To prevent personal injury caused by unexpected movement:

1. Park machine on a level surface.
2. Engage tractor parking brake and/or place transmission in PARK.
3. Disengage PTO.
4. Shut off tractor engine and remove key.

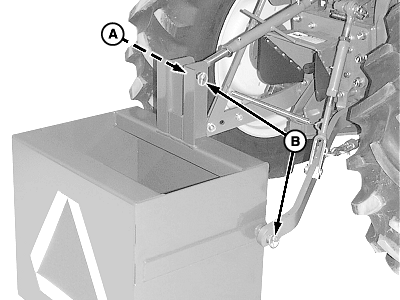

W05958-UN-27MAR03

A - Center Link

B - Quick-Lock Pins (3 used)

1. Slowly push hitch control lever to lower ballast box to the ground.

2. Remove quick-lock pins (B) from hitch pins and install in storage position on tractor draft links.

3. Remove tractor draft links from ballast box hitch pins.

4. Remove quick-lock pin (B) from center link (A). Position tractor center link in transport location. Reinstall center link pin/hardware.

5. Carefully drive tractor away.

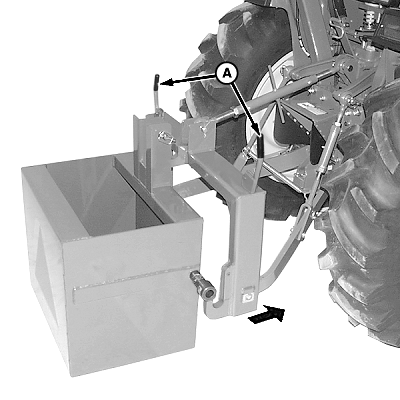

W05201-UN-06MAR02

A - Latch Control Levers

1. Slowly push hitch control lever to lower ballast box close to the ground.

2. Raise both latch control levers (A) on quick coupler.

3. Start tractor engine.

4. Lower ballast box to the ground. Continue lowering quick coupler until hooks clear ballast box hitch pins.

5. Carefully drive tractor away.
