Replacing Orifice

IMPORTANT:

W09274
W09274-UN-29JAN08

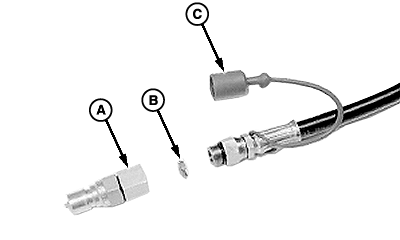

A - Adapter Fitting

B - Orifice

C - Cap, (BLUE)

Orifice (B) must be in place for more efficient use of tractor hydraulics. The lift circuit orifice slows the lowering and improves control of lift arms.

Orifice (B), is in the head-end lift cylinder fitting with cap (C) color-coded BLUE.

Flat face of orifice must be against inside of adapter fitting (A).

OUO6038,0001E50-19-20091110
