Safety Sign Locations

W22491
W22491-UN-18MAY12

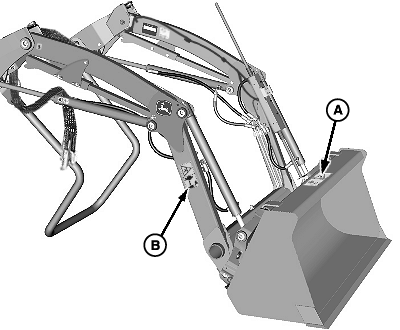

Decal Locations

W06755
W06755-UN-17MAR04

(A) (Top of Bucket)

W06756
W06756-UN-17MAR04

(B) (Both Sides)

A—Keep Riders Off Attachment

  • Do not use loader as a work platform.
  • Do not lift or carry anyone on loader or in bucket or attachment.

B—Maintain Safe Distance from Raised Loader

  • Never allow anyone to walk or work under a raised loader.
  • Be sure that bystanders are not standing near the machine while operating.

W22493
W22493-UN-09MAY12

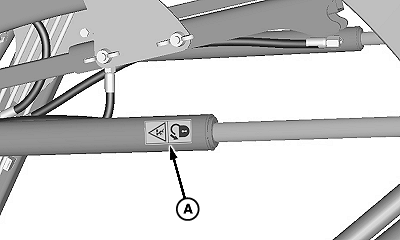

Lift Cylinder (Left-Hand Side Shown)

W21935
W21935-UN-10FEB12

(A) (Both Sides)

A—Warning Use service locks when performing service under raised loader.

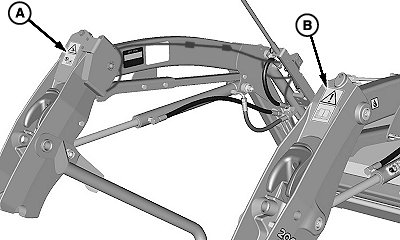

W22494
W22494-UN-18MAY12

W06755
W06755-UN-17MAR04

(A)

W07157
W07157-UN-06DEC04

(B)

A—Danger Serious injury or death can result from rollovers.

  • Do not handle round or large square bales.
  • Use ROPS and seat belt at all times.
  • Add required rear ballast.
  • Move wheels to widest recommended setting.
  • Operate tractor at low speed.

B—Caution

  • Lock loader latches before operating.
  • Before servicing, adjusting equipment, or disconnecting oil lines:
    a) Lower loader to ground or support lift arms.
    b) Shut off engine and relieve hydraulic pressure.
  • Observe safety recommendations in Loader Operator’s Manual.

W22498
W22498-UN-16MAY12

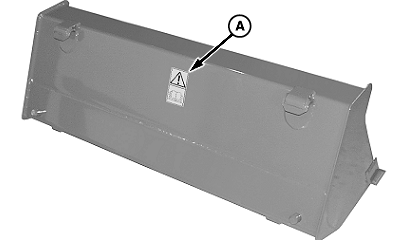

Backside of Bucket

W07157
W07157-UN-06DEC04

Warning To avoid injury or death caused by falling attachment, quick lock pins must be installed at all times.

W21126
W21126-UN-22OCT10

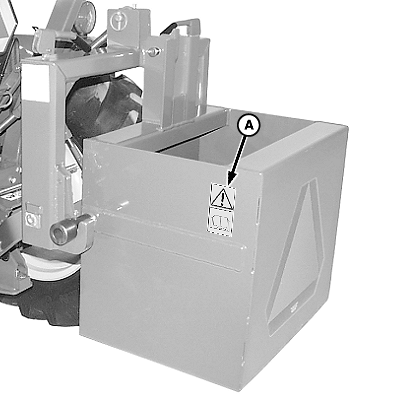

Ballast Box

W07157
W07157-UN-06DEC04

(A)

A—Warning Tractor instability or loss of steering control can result if ballast box is installed without loader. To avoid injury, do not operate tractor with ballast box unless loader is installed.

OUO6038,00020C0-19-20120510
