Lubricate and Maintain Loader Safely

CAUTION:

W22573
W22573-UN-04JUN12

E50093
E50093-UN-08AUG01

W00278
W00278-UN-04DEC91

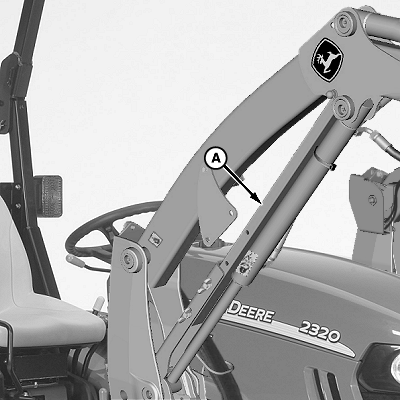

A - Service Lock (1 each side)

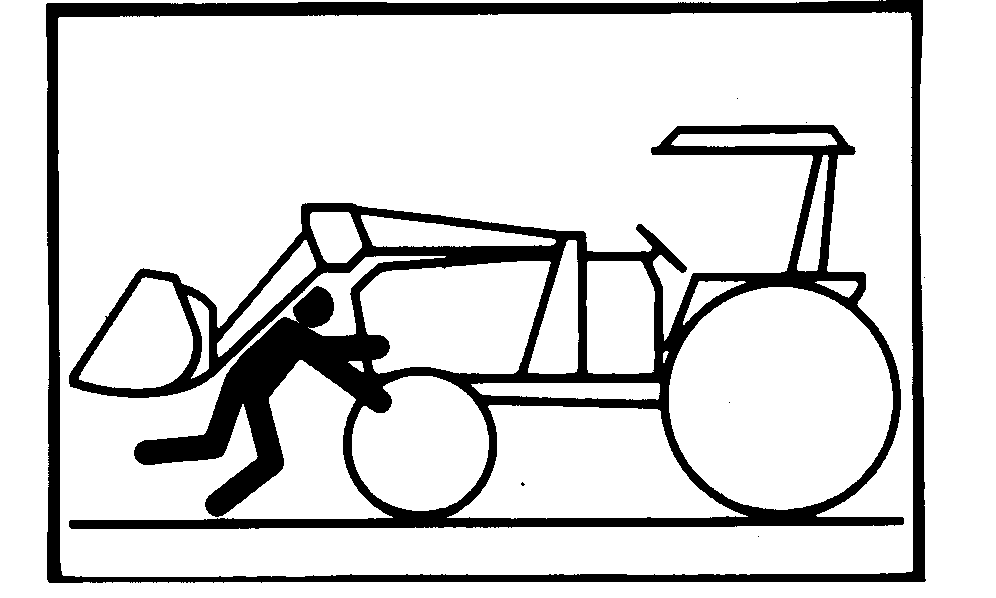

Help prevent bodily injury from accidental lowering of loader. Do not perform service around front of tractor with loader elevated and unsupported. Before lubricating or servicing the loader or tractor, perform the following:
  1. Engage parking brake or place transmission in PARK.
  2. Lower loader to ground or install service locks (A) on both boom cylinders. (See USING SERVICE LOCKS in Operate Loader section.)
  3. Shut off tractor engine.
  4. Slowly relieve pressure in hydraulic system. (See procedure in your tractor Operator's Manual.)

IMPORTANT: Avoid machine damage. Do not lower loader onto service locks with hydraulic pressure applied or with load in bucket.

OUO6038,00020CD-19-20120523
