Identify Hose Connections

NOTE:

W22577-UN-23MAY12

W22578-UN-01JUN12

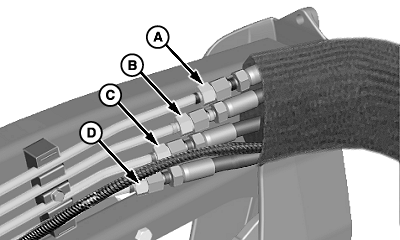

Identify hoses by color-coded caps on end of hoses and tie bands.

Key	Color	Hydraulic Function
A	Black	Bucket Cylinder—Rod End
B	Yellow	Bucket Cylinder—Head End
C	Blue	Lift Cylinder—Head End
D	Red	Lift Cylinder—Rod End
