Attaching and Detaching Attachment

1. NOTE:

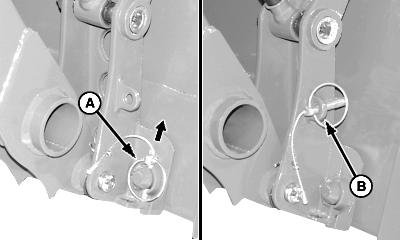

   W07260-UN-28FEB05

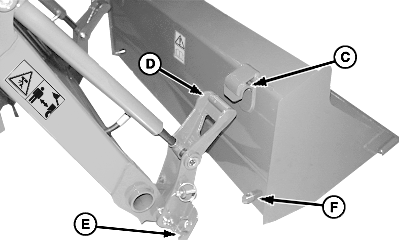

   W22483-UN-04MAY12

   A - Quick-Lock Pin

   B - Storage Position

   C - Hook

   D - Holder

   E - Holder Strap

   F - Bucket Pin

   Procedure is the same for all attachments. Bucket attachment shown.

   Start tractor engine.

---




2. Release parking brake and/or place transmission in NEUTRAL.

3. Roll attachment back slightly and raise boom approximately 460 mm (18 in.) above ground level.

4. Engage tractor parking brake and/or place transmission in PARK. Shut off tractor engine and remove key.

5. Remove quick-lock pin (A) from each side of attachment.

6. Store pins in storage position (B).

7. Start tractor engine.

8. Extend bucket cylinders until pin (F) releases from holder strap (E) on each side of attachment.

9. Lower loader boom, place transmission in REVERSE and move away from attachment. Holder (D) will release from hook (C) on each side of attachment.

10. Set parking brake and/or place transmission in PARK. Shut off tractor engine and remove key.

11. Attach attachment in reverse order of detaching.
