Prepare Loader For Attachment To Tractor

1.

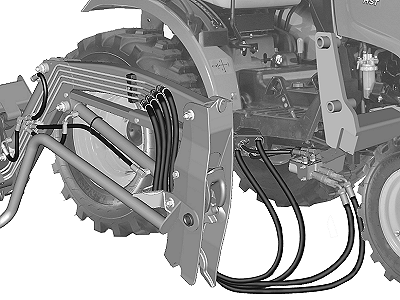

   W22468-UN-01JUN12


   X9811-UN-23AUG88

   Start tractor engine.

---




2. Drive tractor slowly to right-hand side of loader.

3. Engage tractor parking brake and place transmission in PARK.

4. Shut off tractor engine and remove key.

5. CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

   Move control levers back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

6. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers or colors on decal by coupler plate. (See IDENTIFY HOSE CONNECTIONS in Service section.)

7. Start tractor engine.

8.

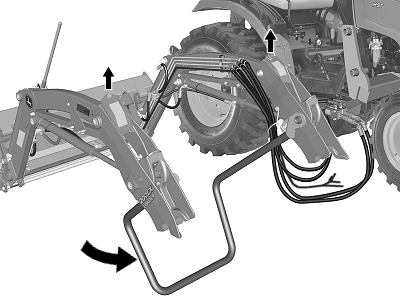

   W22585-UN-06JUN12

   Raise loader from ground by extending lift cylinders. Parking stand should contact ground and extend rearward toward tractor.

---




9. Shut off tractor engine and remove key.

10. CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control levers back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

11. Disconnect hydraulic hoses.

12. Attach loader to tractor. (See ATTACH LOADER in Attach Loader section.)
