Every Two Years

W09573
W09573-UN-26JUN08

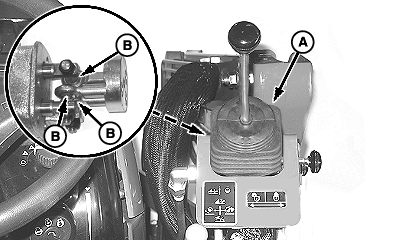

A - Boot

B - Ball Joint

Lubricate bearings on single lever ICV.

  1. Pull off boot (A) and slide up shaft.

  2. Apply grease liberally to the outside surface of each ball joint (B). Move lever in all directions to ensure lubricant penetrates ball joints.

  3. Install boot.

OUHX357,00000FA-19-20080626
