Installing Hitch Pin Bushings on Ballast Box for Category 2 Hitch

1. NOTE: Install bushings on both hitch pins. Right-hand side shown.

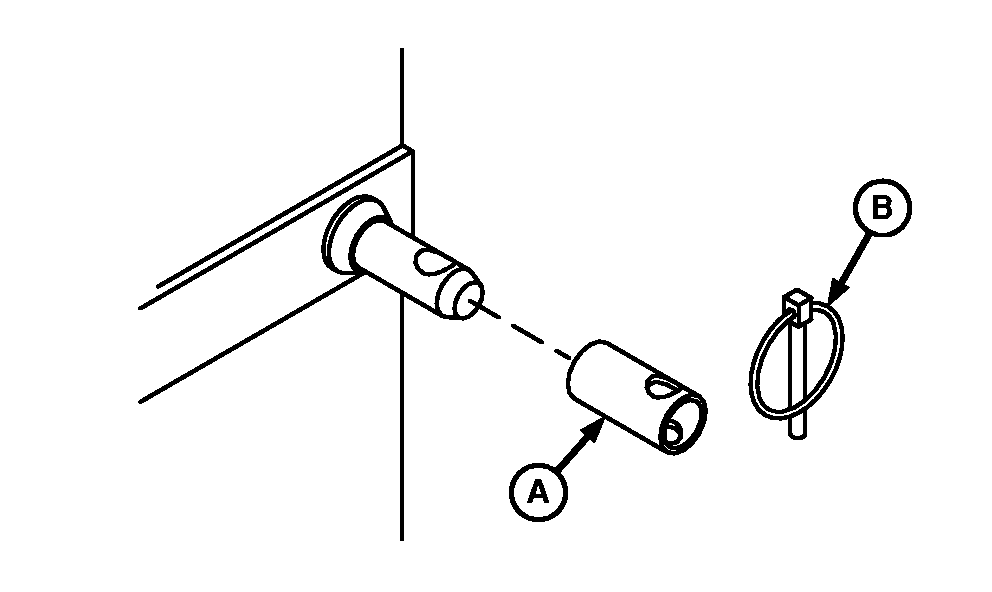

   W05778-UN-09DEC02

   A - Bushing

   B - Quick-Lock Pin

   Install bushing (A) over hitch pin with cross hole as shown.

---




2. Install quick-lock pin (B).
