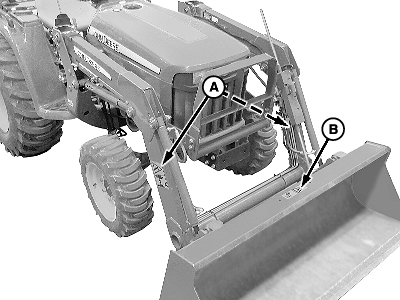

Safety Sign Locations

W22595
W22595-UN-22JUN12

W06756
W06756-UN-17MAR04

A—Warning (Both Sides)

W06755
W06755-UN-17MAR04

B—Warning

A—Warning Maintain Safe Distance from Raised Loader

  • Never allow anyone to walk or work under a raised loader.
  • Be sure that bystanders are not standing near the machine while operating.

B—Warning To avoid injuries from falls.

  • Do not work from or allow rider on loader or its attachment.

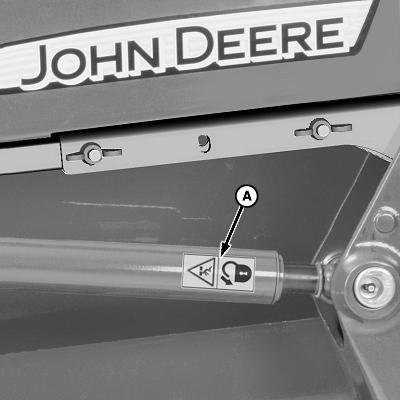

W22710
W22710-UN-22JUN12

Lift Cylinder (Left-Hand Side Shown)

W21935
W21935-UN-10FEB12

(A) (Both Sides)

A—Warning Use service locks when performing service under raised loader.

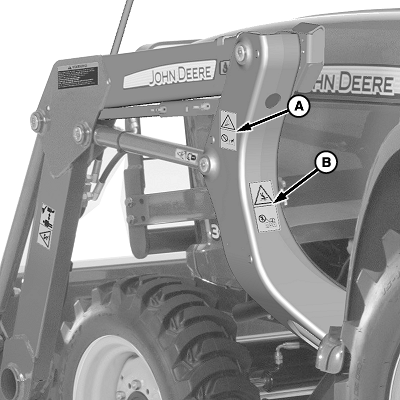

W22596
W22596-UN-26JUN12

Left-Hand Mast

SSW54770
SSW54770-UN-07APR10

A—Danger

W06755
W06755-UN-17MAR04

B—Warning

A—Danger To avoid serious injury or death can result from rollovers.

  • Do not handle round or large square bales.
  • Use ROPS and seatbelt at all times.
  • Add required rear ballast.
  • Move wheels to widest recommended setting.
  • Operate tractor at low speed.
  • Do not handle round or large square bales.
  • Handle raised loads with caution.
  • Carry loads low.

B—Warning To avoid injuries from falls.

  • Do not work from or allow rider on loader or its attachment.

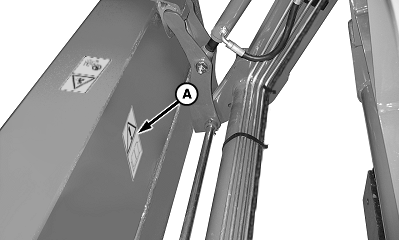

    W22709
    W22709-UN-21JUN12

    Backside of Bucket

    W07157
    W07157-UN-06DEC04

    A—Warning

    A—Warning To avoid injury or death caused by falling attachment.

  • Quick lock pins must be installed at all times.

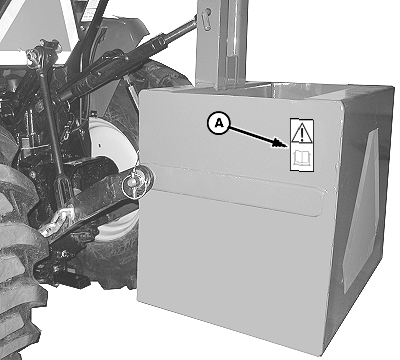

W22657
W22657-UN-12JUN12

Ballast Box

W07157
W07157-UN-06DEC04

A—Warning

A—Warning Tractor instability or loss of steering control may result if ballast box is installed without loader. To avoid injury do not operate tractor with ballast box unless loader is installed.

OUO6038,00020E9-19-20120620
