Every 50 Hours

Tighten Loader and Hood Guard Hardware

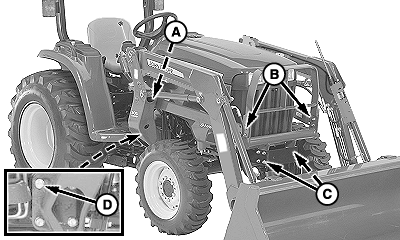

W22715-UN-22JUN12

Right-Hand Side Shown

A - M12 Hardware (4 used each side)

B - M12 Hardware (2 used each side)

C - M12 Hardware (4 used each side)

D - M16 Hardware (4 used each side)

Tighten hardware (A—D) on both sides to specifications.

Item	Measurement	Specification
M12 Hardware (A—C)	Torque	140 N•m (105 lb-ft)
M16 Hardware (D)	Torque	310 N•m (229 lb-ft)

Tighten Nuts on Pivot Pins

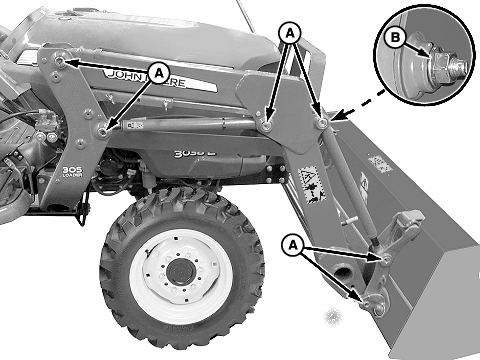

W22716-UN-25JUN12

Left-Hand Side Shown

A - Pivot Pins

B - Lock Nuts

Tighten twelve lock nuts (B) (inside frame) on pivot pins (A), six on each side of loader, to specification.

Item	Measurement	Specification
Lock Nuts	Torque	150 N•m (111 lb-ft)

Check and Adjust Anti-Spill System

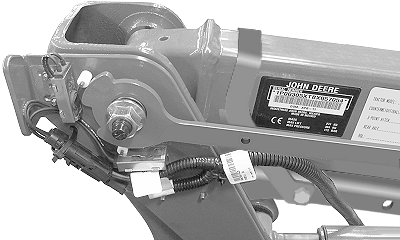

W22730-UN-28JUN12

Boom Switches (Cover Removed)

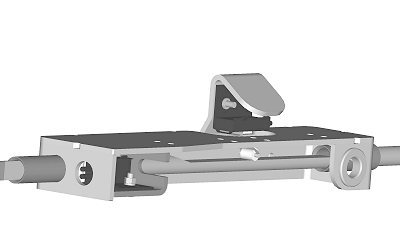

W22154-UN-27APR12

Bucket Switches (Shown Removed for Clarity)

Check Transmission/Hydraulic Oil Level

1. Cycle all cylinders three or four times.

2. Retract bucket cylinders completely and lower loader to ground.

3. Shut off tractor engine and remove key.

4. Check transmission/hydraulic oil level. (See your tractor Operator’s Manual).
