Carry Materials Safely

W01146-UN-12AUG93

W09574-UN-26JUN08

A - Lockout Knob

Be sure anyone operating the loader is aware of safe operation and potential hazards.

Refer to the tractor operator’s manual for safe operational practices.

Do not exceed lift capacity of loader.

Be sure that tractor is ballasted correctly.

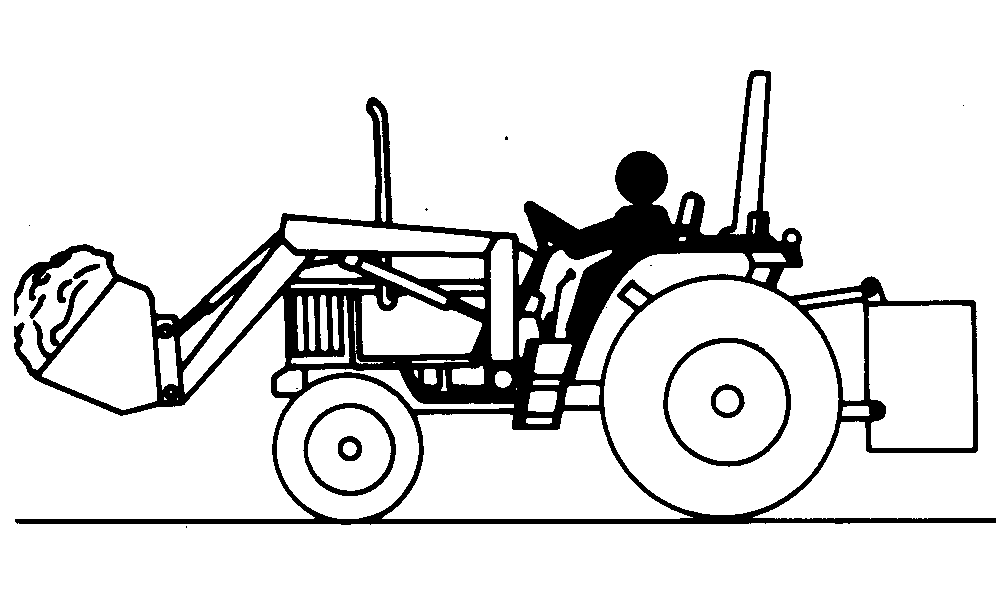

Carry load low at all times.

If tractor is equipped with 4-WD, be sure it is engaged during loader operation.

Stop loader gradually when lowering or lifting loads.

To help prevent loss of control, do not use FLOAT position to lower loader.

DO NOT HANDLE ROUND OR LARGE SQUARE BALES. The loader is not approved for bale handling attachments.

Avoid handling loose or shiftable loads.

Reduce tractor ground speed when traveling over rough ground or when making turns.

Drive slowly through gates and doors.

Multi-function control lever operation can be locked out to prevent unintentional movement.
