Operate Loader with Multi-Function Control Lever

W06245
W06245-UN-17JUN03

W09571
W09571-UN-26JUN08

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

CAUTION: To help prevent personal injury caused by unintentional lowering of loader, do not use FLOAT position to lower loader. In float position the loader falls to the ground without restriction.

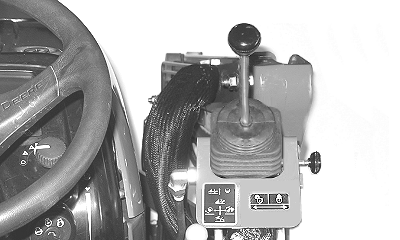

NOTE: Refer to symbols on labels located near multifunction control lever.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back or down to release from FLOAT.

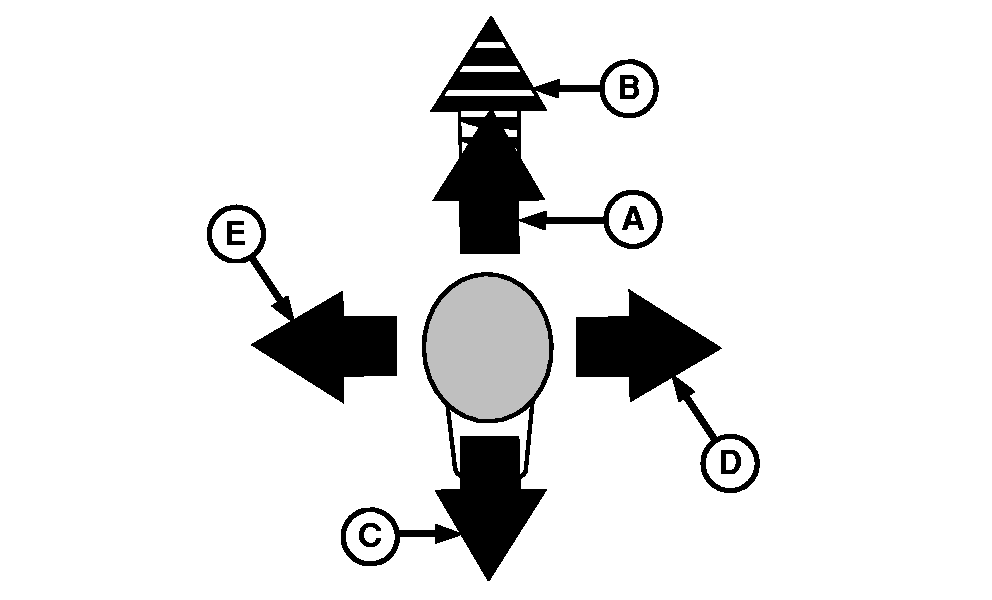

Key

Lever Movement

Loader Operation

A

Forward or Up

Boom Lower

B

Locked Forward or Up

Boom Float

C

Back or Down

Boom Raise

D

To Right-Hand Side

Bucket Dump

E

To Left-Hand Side

Bucket Roll Back

NOTE: Low oil flow restricts two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force occurs first.

Stop engine and move control lever into every position to relieve hydraulic pressure.

NOTE: Multifunction control lever has a lever lock. (See LOCK OUT MULTIFUNCTION CONTROL LEVER in this section.)

RG53986,000010F-19-20080701
