Detach Bucket or Attachment


Global Carrier Attachment

  1. CAUTION:

    X9811
    X9811-UN-23AUG88

    W24164
    W24164-UN-26AUG13

    W24304
    W24304-UN-18OCT13

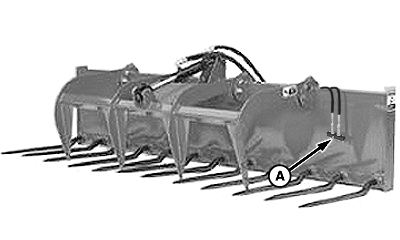

    Hay Grapple Attachment Shown

    W24165
    W24165-UN-18OCT13

    A - Coupler, Attachment

    B - Lever

    C - Pin (1 each side)

    D - Coupler, Loader

    E - Red Knob

    F - Cover

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines.

    If an accident occurs, see a doctor immediately. Information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    If Equipped with Hydraulic-Operated Attachment, such as a Grapple, with multicoupler:

    1. Close grapple/attachment and lower to ground.

    2. Relieve pressure in hydraulic system. (See procedure in your tractor Operator’s Manual and RELIEVE HYDRAULIC PRESSURE SAFELY in Safety section).

    3. Shut off tractor engine.

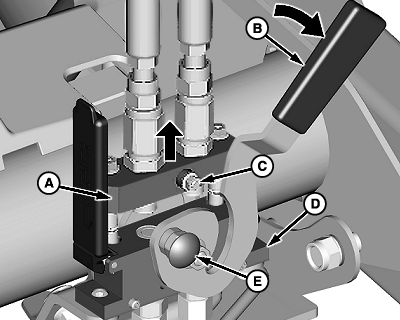

    4. Push red knob (E) IN and rotate lever (B) upward to disengage pins (C) and separate coupler halves.

    5. Remove attachment coupler (A) from loader coupler (D). Place coupler with hoses on attachment as shown.

    6. IMPORTANT: Avoid interference with tractor components. Lever (B) must be in the locked (DOWN) position when attachment coupler half is removed. Cover (F) must also be lowered to protect connection surface of loader coupler.

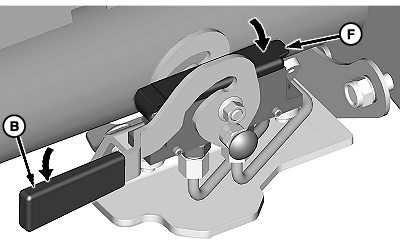

      Close cover (F) and rotate lever (B) downward to lock in place.


  2. W24166
    W24166-UN-26AUG13

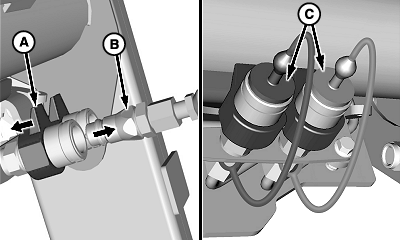

    A - Coupler, Female

    B - Coupler, Male

    C - Plugs

    If Equipped with Hydraulic-Operated Attachment, such as a Grapple, with quick couplers:

    1. Close grapple/attachment and lower to ground.

    2. Relieve pressure in hydraulic system. (See procedure in your tractor Operator’s Manual and RELIEVE HYDRAULIC PRESSURE SAFELY in Safety section).

    3. Shut off tractor engine.

    4. Push and hold collar (A) on female coupler

    5. Disconnect male coupler (B).

    6. Release collar on female coupler

    7. Place cap on male tip at hose end and insert plug (C) into female coupler.

    8. Repeat Steps d—g for remaining hose connection.


  3. CAUTION:

    W24167
    W24167-UN-26AUG13

    A - Carrier

    DO NOT allow bystanders near loader while detaching bucket/attachment.

    To prevent serious injury, bucket/attachment must be detached only by tractor operator.

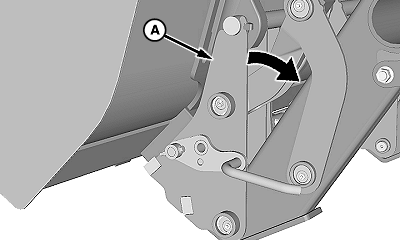

    Roll back bucket or attachment slightly (retract bucket cylinders) until resting on carrier at (A).


  4. W24168
    W24168-UN-26AUG13

    Latch Lever

    W24169
    W24169-UN-22AUG13

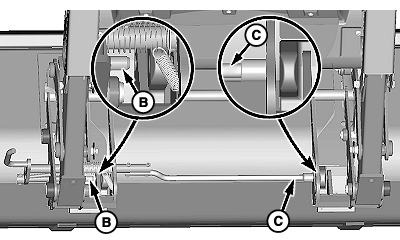

    Latch Pins Retracted (Underside)

    W24170
    W24170-UN-28AUG13

    A - Lever

    B - Pin, Left-Hand Side

    C - Pin, Right-Hand Side

    D - Hooks

    E - Carrier Arms

    Place transmission in PARK and shut off engine.

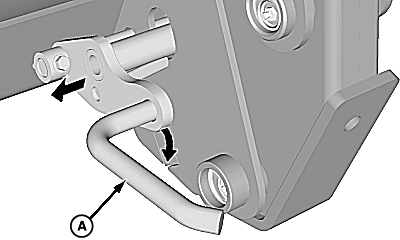

  5. Pull latch lever (A) outward to disengage latch pins (B and C) from bucket/attachment. Rotate lever rearward to lock latch in unlatched position.

  6. Start tractor engine. Place transmission in NEUTRAL to allow tractor movement.

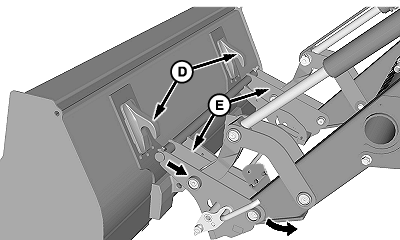

  7. Tilt carrier forward (extend bucket cylinders) and lower loader to ground allowing carrier arms (E) to clear hooks (D) on bucket/attachment.

  8. CAUTION: Avoid pinch hazard. If not immediately attaching to another attachment, fully roll back carrier to engage latch pins.

    Place transmission in REVERSE and slowly back tractor away from bucket/attachment.


500-Style Carrier Attachment

  1. W24171
    W24171-UN-28AUG13

    Left-Hand Side Shown

    A - Carrier

    B - Hook (1 each side)

    C - Pin, Bucket (1 each side)

    D - Strap (1 each side)

    E - Pin, Quick Lock (1 each side)

    F - Storage Position (1 each side)

    Start tractor engine.


  2. NOTE: Procedure is the same for all attachments. Bucket attachment shown.

    Roll bucket back slightly and raise boom approximately 460 mm (18 in.) above ground level.

  3. Set parking brake and/or place transmission in PARK and shut off tractor engine.

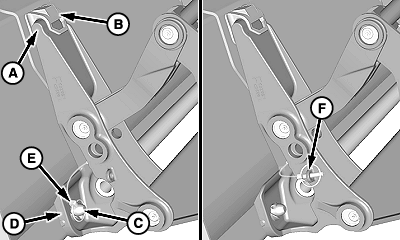

  4. Remove quick lock pin (E) from each side of attachment.

  5. Store pins in storage position (F).

  6. Start tractor engine. Slowly extend bucket cylinders until pin (C) releases from carrier strap (D) on each side of bucket/attachment.

  7. Lower loader boom, place transmission in REVERSE and move away from bucket/attachment. Carrier (A) will release from hooks (B) on bucket/attachment.

  8. Set parking brake and/or place transmission in PARK. Shut off tractor engine and remove key.


Skid-Steer Carrier Attachment

  1. W08389
    W08389-UN-29NOV06

    Left-Hand Lock Pin

    W08399
    W08399-UN-28NOV06

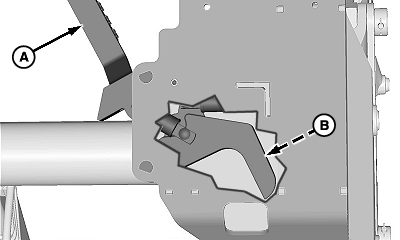

    A - Latch Handles

    B - Lock Pin (1 each side)

    C - Lip

    D - Latches

    Start tractor engine and position machine on flat level ground. Level bucket or attachment and lower loader completely to the ground.


  2. Place transmission in PARK and shut off engine.

  3. IMPORTANT: Make sure both latch handles (A) are up and lock pins (B) are fully retracted.

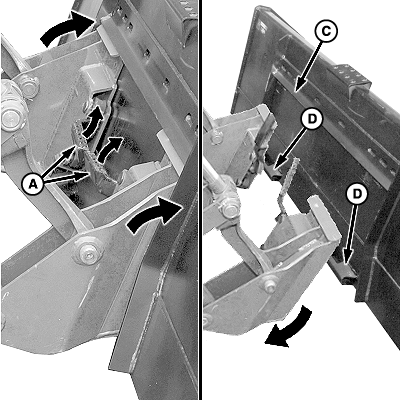

    Raise both latch handles (A) to the UP (unlatched) position.

  4. Start tractor engine and place transmission in NEUTRAL. Slowly tilt carrier forward (extend bucket cylinders) until carrier clears bottom latches (D).

  5. Place transmission in REVERSE and slowly back away from bucket or attachment.

  6. Lower loader to the ground, place transmission in PARK, shut off engine and remove key.
