Leveling Bucket

W24174
W24174-UN-28AUG13

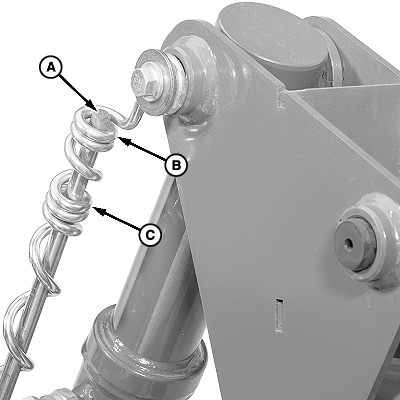

Right-Hand Side

A - Rod

B - Coil Cluster, First

C - Coil Cluster, Second

Level indicator rod (A) is even with second coil cluster (C) when bucket is level.

Attachment such as a pallet fork, is level when top of rod is aligned with first coil cluster (B).
