Every 10 Hours

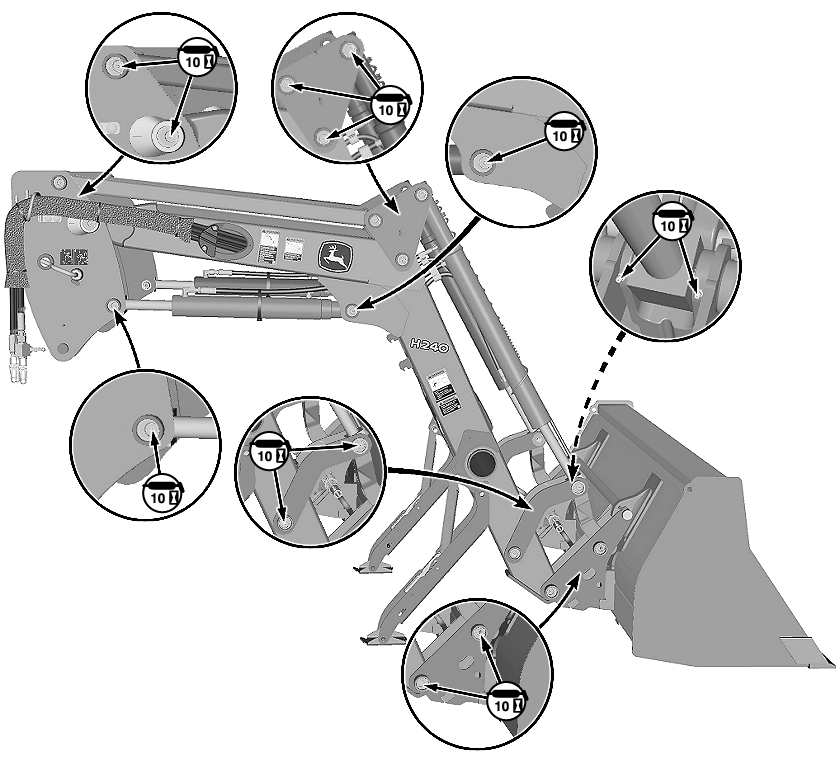

Mechanical Self-Leveling Loaders

NOTE:

W24286
W24286-UN-17OCT13

Lubrication Points

Roll back bucket and lower loader to ground to access all lubrication points.

Lubricate twenty-six fittings, thirteen on each side of loader.

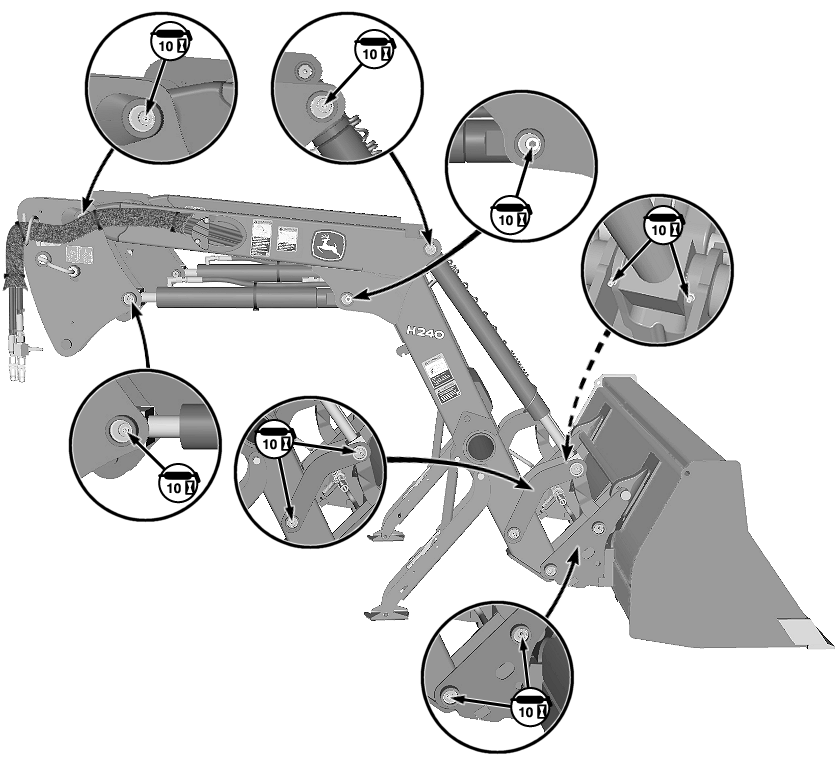

Non Self-Leveling Loaders

NOTE:

W24287
W24287-UN-17OCT13

Lubrication Points

Roll back bucket and lower loader to ground to access all lubrication points.

Lubricate twenty fittings, ten on each side of loader.

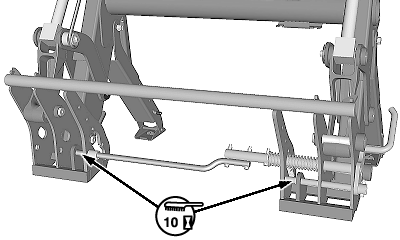

Latch Pins

W24288
W24288-UN-30AUG13

Clean and lubricate latch pins on both sides of carrier. Make sure pins engage freely.

OUO6038,0002201-19-20130830
