Identify Hose Connections—Loader-to-Multicoupler
NOTE:

W24294-UN-10FEB14

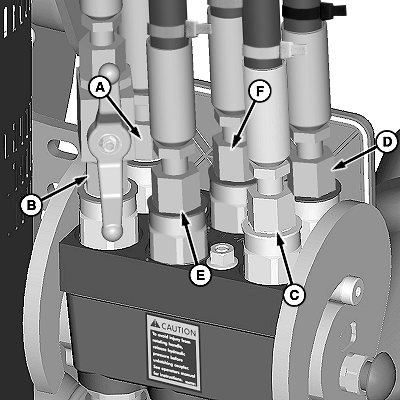

Multicoupler—Loader Half

W24295-UN-13FEB14

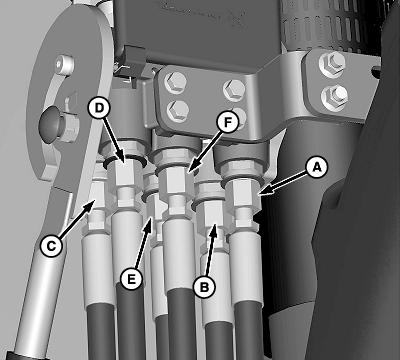

Multicoupler—Tractor Half
Hoses are identified by color-coded tie bands near each fitting.
|
Key
|
Color
|
Hydraulic Function
|
|
A
|
Red
|
Lift Cylinder—Rod End
|
|
B
|
Blue
|
Lift Cylinder—Head End
|
|
C
|
Yellow
|
Bucket Cylinder—Head End
|
|
D
|
Black
|
Bucket Cylinder—Rod End
|
|
E
|
Green
|
Attachment Cylinder—Rod End
|
|
F
|
Orange
|
Attachment Cylinder—Head End
|
|
|
