Identify Hose Connections—Mid-Mount Valves
NOTE:
W24301-UN-09OCT13

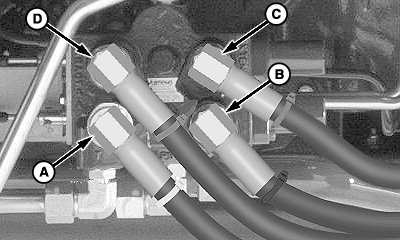

Two-Function Mid-Mount Valve
W24302-UN-09OCT13

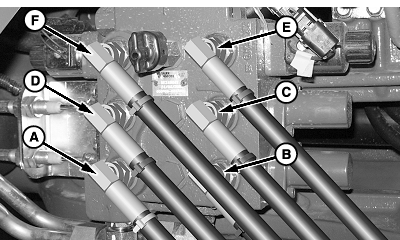

Third-Function Mid-Mount Valve
Hoses are identified by color-coded tie bands near each fitting.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Yellow |
Bucket Cylinder—Head End |
|
B |
Black |
Bucket Cylinder—Rod End |
|
C |
Blue |
Lift Cylinder—Head End |
|
D |
Red |
Lift Cylinder—Rod End |
|
E |
Green |
Attachment Cylinder—Head End |
|
F |
Orange |
Attachment Cylinder—Rod End |
|
