Non Self-Leveling Loader Specifications on 5E Series T3 Three-Cylinder Tractor1

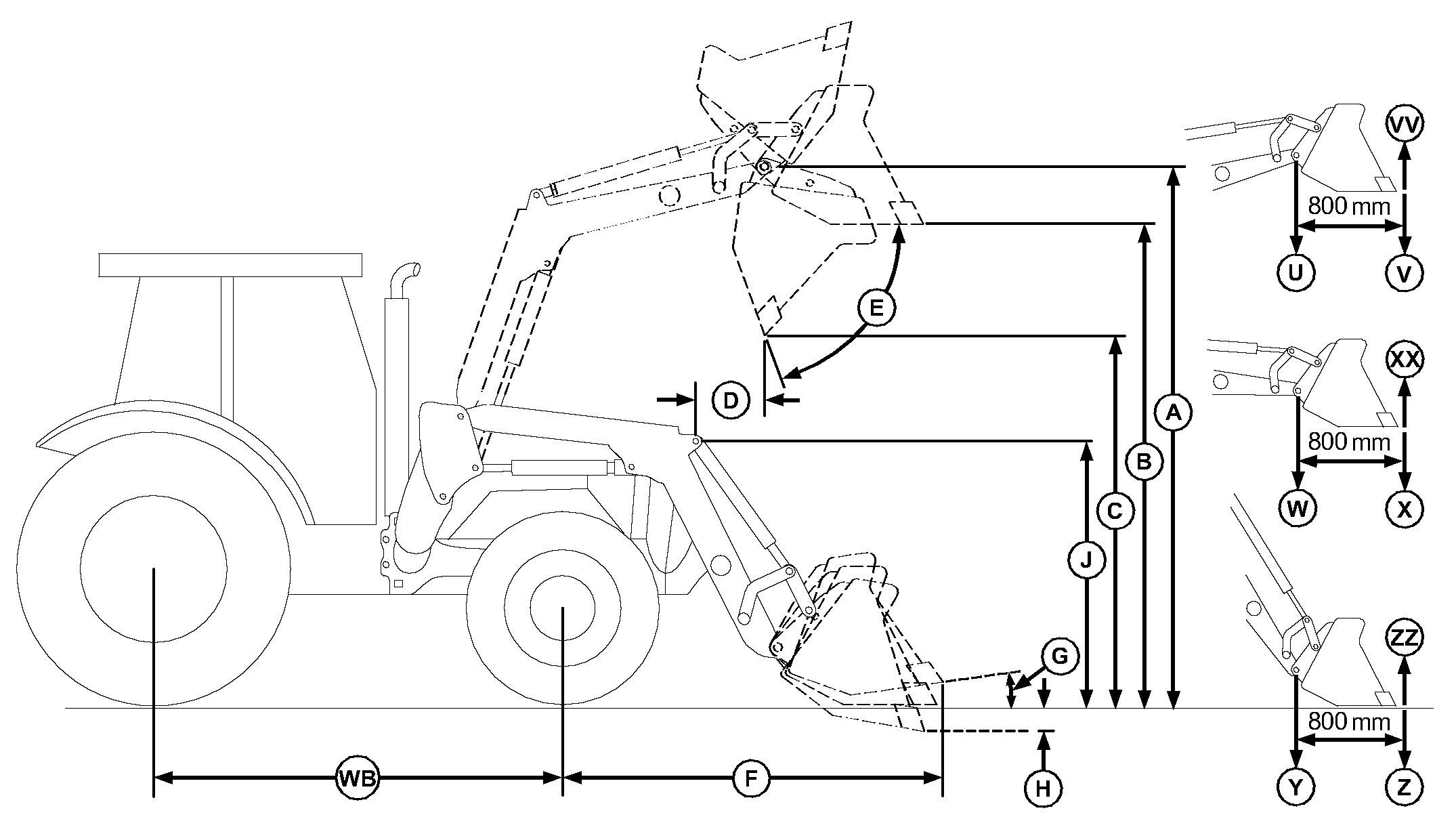

W24300-UN-04NOV13
|
Model 5E Series T3 Three-Cylinder Tractor |
||
|---|---|---|
|
Minimum Rear Ballast |
Option 1 |
3-Point Hitch 1050 kg (2315 lbs.) |
|
Option 2 |
3-Point Hitch 950 kg (20946 lbs.) Plus Rear Axle 200 kg (441 lbs.) |
|
|
Front Tires |
12.4R24 |
|
|
Rear Tires |
16.9R30 |
|
|
Materials Bucket |
||
|
Width |
1850 mm (73 in.) |
|
|
Length |
— |
|
|
Mass |
178 kg (392 lb.) |
|
|
Hydraulic System |
||
|
Rated Flow |
43 L/min. (11 gpm) |
|
|
Maximum Pressure |
19498 kPa (195 bar) (2828 psi) |
|
|
Cycle Times (in seconds) |
||
|
Loader Raise Time |
5.1 |
|
|
Loader Lower Time |
3.5 |
|
|
Bucket Dump Time |
4.3 |
|
|
Bucket Rollback Time |
2.6 |
|
|
Lift Height (Maximum) |
||
|
To Pivot Pin (A) |
3336 mm (131 in.) |
|
|
Clearance |
||
|
Bucket Level (B) |
3141 mm (124 in.) |
|
|
Bucket Dumped (C) |
2484 mm (98 in.) |
|
|
Digging Depth (H) |
82 mm (3 in.) |
|
|
Reach |
|
|
At Maximum Lift Height with Bucket Dumped (D) |
921 mm (36 in.) |
|
Bucket on Ground with Bucket Leveled (F) |
2154 mm (85 in.) |
|
Angles (Maximum) |
|
|
Dump (E) |
59° |
|
Dump at Ground |
148° |
|
Rollback (G) |
46° |
|
Lift Capacity |
|
|
To Maximum Height at Pivot Point (U) |
1665 kg (3671 lb.) |
|
To Maximum Height at 800 mm (31.5 in.) Ahead of Pivot Point (V) |
1071 kg (2361 lb.) |
|
To 1500 mm (59 in.) at Pivot Point (W) |
1825 kg (4023 lb.) |
|
To 1500 mm (59 in.) at 800 mm (31.5 in.) Ahead of Pivot Point (X) |
1347 kg (2970 lb.) |
|
Breakout Force |
|
|
At Pivot Point (Y) |
20035 N (4504 lb.-force) |
|
800 mm (31.5 in.) Ahead of Pivot Point (Z) |
13798 N (3102 lb.-force) |
|
Bucket Rollback Force |
|
|
At maximum height (VV) |
11445 N (2573 lb.-force) |
|
At 1500 mm (59 in) lift height (XX) |
20809 N (4678 lb.-force) |
|
At Ground Level Line (ZZ) |
21605 N (4857 lb.-force) |
|
1 (Specifications and design
subject to change without notice)
|
