Operating Loader with Multi-Function (Single Lever) Control Lever

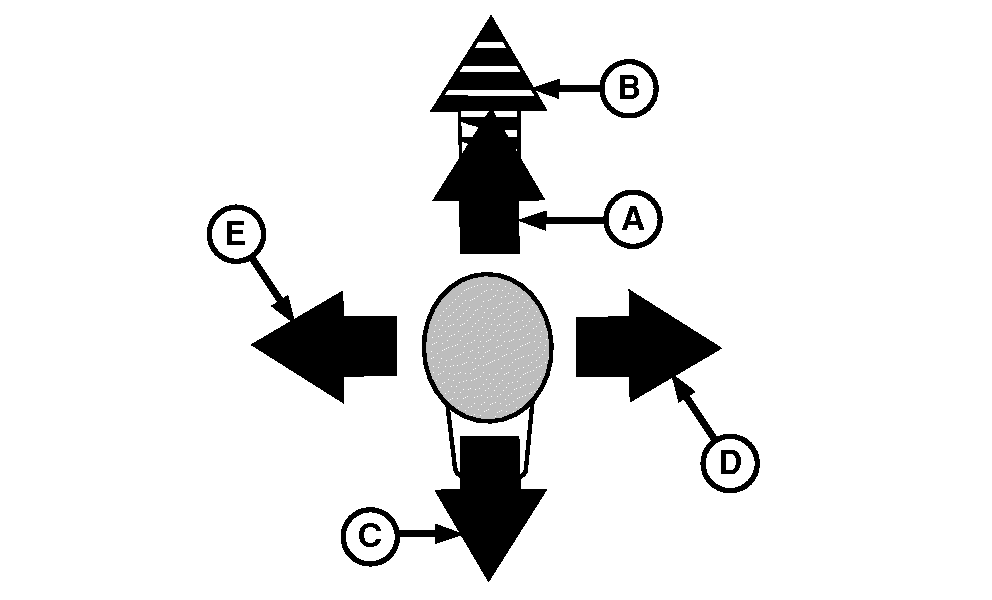

W06245-UN-17JUN03

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Key	Lever Movement	Loader Operation
A	Forward	Boom Lower
B	Locked Forward	Boom Float
C	Back	Boom Raise
D	To Right-Hand Side	Bucket/Attachment Dump
E	To Left-Hand Side	Bucket/Attachment Roll Back

NOTE: Oil flow limitations may not allow two loader operations, such as RAISE and ROLL BACK, at the same time. The operation that requires the least hydraulic force will move first.

Mechanical Multi-Function Control Lever (Early Version)

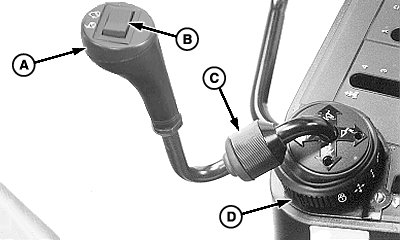

W08190-UN-19SEP06

Third-Function Shown

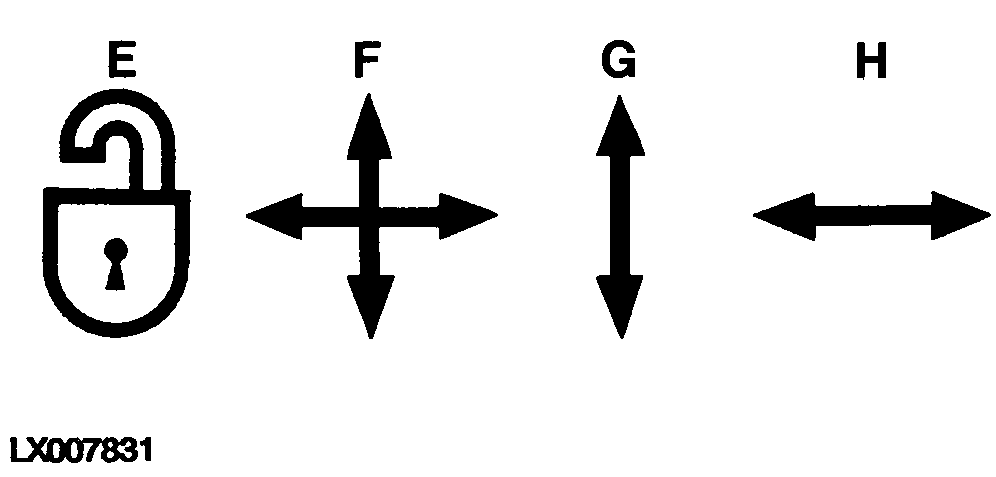

LX007831-UN-15AUG94

Symbols on Locking Ring

A - Multi-Function Control Lever

B - Switch, Third-Function (Optional)

C - Locking Collar

D - Locking Ring

E - Lever Locked

F - Lever Not Locked

G - Lever Locked to Left and Right

H - Lever Locked to Front and Rear

Locking collar (C) can be used to secure the lever in one of two positions.

If the lever is not required, move locking ring (D) to position (E) and slacken off locking collar (C). Swing the lever to the right and tighten locking collar (C) again. Locking ring (D) can be used to lock out various lever movements.

An attachment, such as a grapple, may be operated by optional switch (B).

Mechanical Multi-Function Control Lever (Later Version)

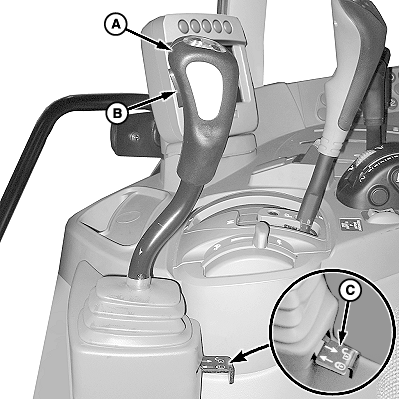

W08191-UN-19SEP06

Third-Function Shown

A - Multi-Function Control Lever

B - Switch, Third-Function (Optional)

C - Transport Lock Slide Control

An attachment, such as a grapple, may be operated by optional switch (B).

Refer to your tractor Operator's Manual for additional information.

5025 Series Control Lever

W09880-UN-10SEP08

A - Control Lever

B - Switch

Refer to your tractor Operator's Manual for additional information.
