Every 50 Hours

Tighten Mounting Frame Cap Screws

1. IMPORTANT:

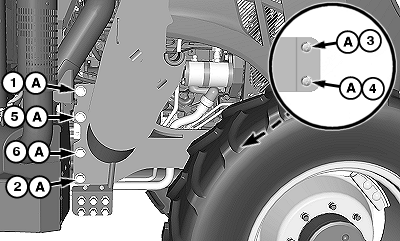

   W26446-UN-13NOV14

   Torque Sequence (Right-Hand Side Shown)

   A - Cap Screws, M20

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A) after the first 10 hours of operation and again after every 50 hours.

   5085E and 5100E Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb-ft)

---




2. IMPORTANT:

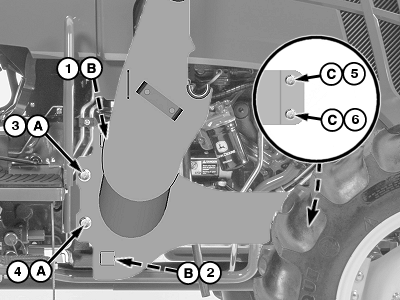

   W24498-UN-12SEP14

   Torque Sequence (Right-Hand Side Shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   C - Cap Screws, M20

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A—C) after the first 10 hours of operation and again after every 50 hours.

   5083E, 5093E, 5101E, 5603, 5425, 5525, and 5625 Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb-ft)
   Cap Screws (B and C)	Torque	610 N·m (450 lb-ft)

---




3. IMPORTANT:

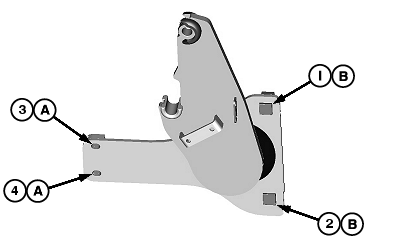

   W26259-UN-31JUL14

   Torque Sequence (Left-Hand Side Shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A and B) after the first 10 hours of operation and again after every 50 hours.

   5083EN, 5093EN, and 5101EN Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb-ft)
   Cap Screws (B)	Torque	610 N·m (450 lb-ft)

---




4. IMPORTANT:

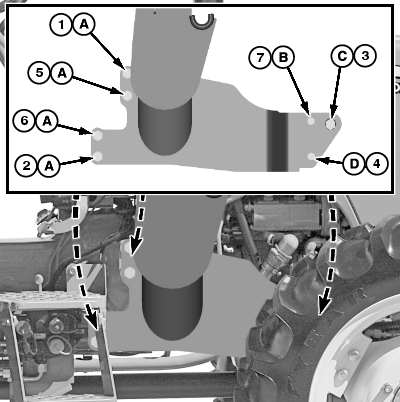

   W24305-UN-04NOV13

   Torque Sequence (Right-Hand Side Shown)

   A - Cap Screws, M20

   B - Cap Screw, M16

   C - Cap Screw, M16

   D - Cap Screw, M16

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A—D) after the first 10 hours of operation and again after every 50 hours.

   5045E, 5055E, 5065E, 5075E (Non FT4 Models; MY13 and earlier), 5103, 5203, 5303, 5403, 5210, 5220, 5310, and 5320 Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screw (A)	Torque	530 N·m (400 lb-ft)
   Cap Screws (B, C, and D)	Torque	275 N·m (200 lb-ft)

---




5. IMPORTANT:

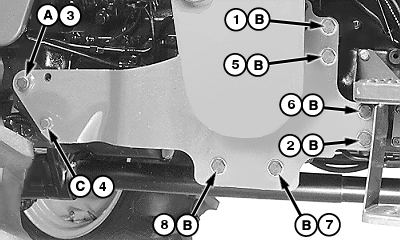

   W24497-UN-05NOV13

   Torque Sequence (Left-Hand Side Shown)

   A - Cap Screw, M16

   B - Cap Screws, M20

   C - Cap Screw, M16

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A—C) after the first 10 hours of operation and again after every 50 hours.

   NOTE: Two bottom cap screws (B) are not used on narrow “N” tractors.

   5410, 5410N, 5420, 5510, 5510N, 5520, and 5520N 2WD, and MFWD Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A and C)	Torque	275 N·m (200 lb-ft)
   Cap Screws (B)	Torque	530 N·m (390 lb-ft)

---




6. IMPORTANT:

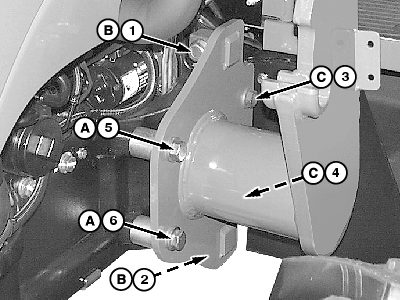

   W21984-UN-10NOV11

   Torque Sequence (Left-Hand Side Shown)

   A - Cap Screws, M20

   B - Cap Screws, M20

   C - Cap Screws, M20

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tightening loader frame cap screws (A—C) after first 3 hours of loader operation is critical. Tighten again after 10 hours and every 50 hours thereafter.

   5225 and 5325 Five-Cylinder Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A and B)	Torque	610 N·m (450 lb-ft)
   Cap Screws (C)	Torque	530 N·m (390 lb-ft)

---




7. IMPORTANT:

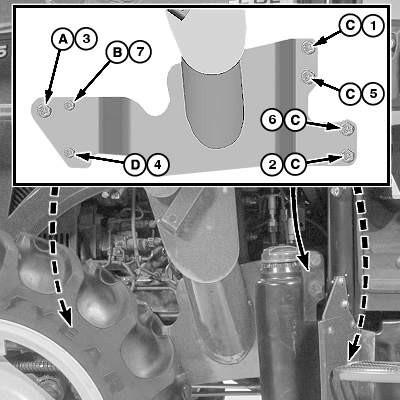

   W24499-UN-05NOV13

   Torque Sequence (Left-Hand Side Shown)

   A - Cap Screw, M16

   B - Cap Screw, M16

   C - Cap Screws, M20

   D - Cap Screw, M16

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tighten loader mounting frame cap screws (A—D) after the first 10 hours of operation and again after every 50 hours.

   5045E, 5055E, 5065E, and 5075E (FT4 Three-Cylinder) MFWD Tractors: Tighten cap screws to specifications in torque sequence shown.

   Item	Measurement	Specification
   Cap Screws (A, B, and D)	Torque	275 N·m (200 lb-ft)
   Cap Screw (C)	Torque	530 N·m (390 lb-ft)

---

Tighten MFWD Axle Housing and Kingpin Mounting Cap Screw

1. IMPORTANT:


   W07471-UN-07JUL05

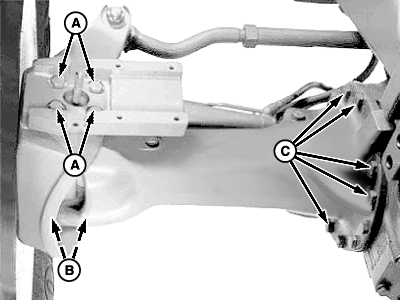

   Right-Hand Side Axle Housing (Viewed From Front)

   A - Cap Screws (4 each side)

   B - Cap Screws (4 each side)

   C - Cap Screws (13 used)

   Help prevent damage to the tractor or loader caused by operating with loose mounting cap screws. Tightening loader frame cap screws after first 3 hours of loader operation is critical. Tighten again after 10 hours and every 50 hours thereafter.

   Tighten kingpin retaining cap screws (A and B), on both sides, to specification.

   Item	Measurement	Specification
   Kingpin Retaining Cap Screws (A and B)	Torque	620 N·m (457 lb.-ft.)

---




2. Tighten thirteen right-hand side axle housing-to-differential case cap screws (C) to specification.

   Item	Measurement	Specification
   Axle Housing-to-Differential Case Cap Screws (C)	Torque	310 N·m (229 lb.-ft.)
