Attach Loader

CAUTION:

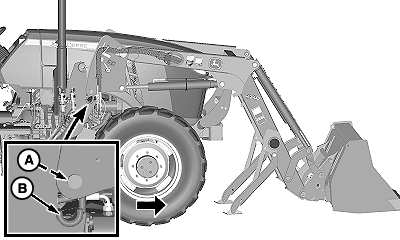

W26639
W26639-UN-12MAR15

A - Pin (1 each side)

B - Saddle (1 each side)

DO NOT allow bystanders nearby while attaching loader.

To prevent serious injury, allow only the operator to attach loader.

  1. Center tractor between loader masts, stopping tractor when both mounting frame saddles (B) are positioned under pins (A) on loader masts.

  2. CAUTION:

    X9811
    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines.

    If an accident occurs, see a doctor immediately. Information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    To prevent personal injury caused by unexpected movement, lower loader to ground before relieving pressure.

    Tractors with SCV (finger pad control) operated loader: With engine running, quickly move loader control levers to FLOAT, one at a time for at least 1 minute.


  3. CAUTION: Lock out SCV control levers before detaching loader to prevent loader movement and possible personal injury.

    Lock out SCV control levers. (See procedure in Controls section.)

  4. Place transmission in PARK and shut off engine.

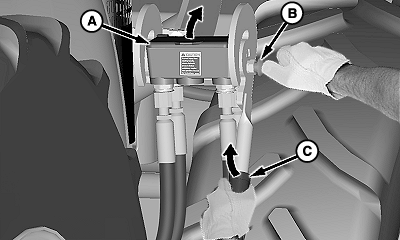

  5. W23849
    W23849-UN-10FEB14

    Multicoupler

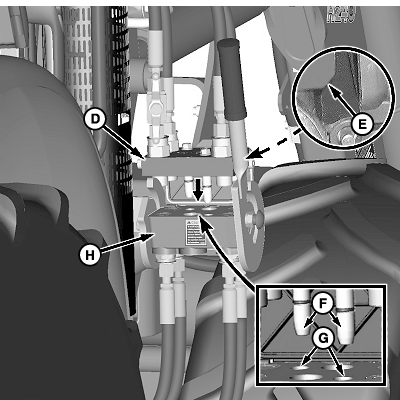

    W23850
    W23850-UN-10FEB14

    W23851
    W23851-UN-10FEB14

    A - Cover

    B - Knob

    C - Handle

    D - Coupler, Loader Half

    E - Chamfered Edge

    F - Locating Pins

    G - Holes

    H - Coupler, Tractor Half

    I - Pin (1 each side)

    Connect hydraulics using multicoupler:

    1. Relieve pressure in hydraulic system: Shut off engine. Turn key to ON position. Do not start tractor engine. Move loader control lever in all directions several times. (See your tractor operator’s manual for specific procedures about relieving hydraulic pressure.)

    2. Push knob (B) IN and rotate handle (C) upward.

    3. Lift cover (A) and insert loader coupler (D), with chamfered edge (E) toward cover, onto tractor coupler (H). Make sure locating pins (F) on loader coupler fit into corresponding holes (G) in tractor coupler.

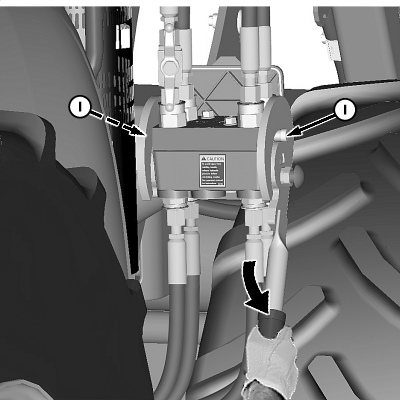

    4. Rotate handle downward to engage pins (I) and lock coupler halves together.


    5. IMPORTANT:

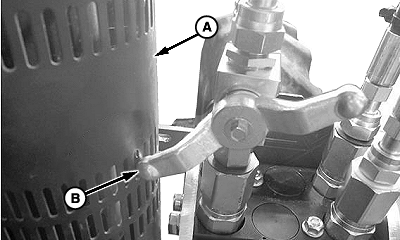

      W24672
      W24672-UN-05FEB14

      W24673
      W24673-UN-13FEB14

      W24674
      W24674-UN-13FEB14

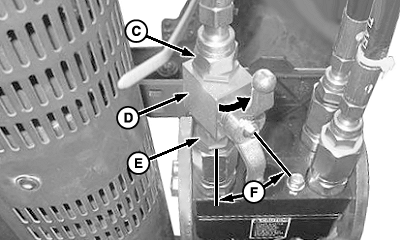

      Valve Handle Clearance (Third Function Shown)

      A - Exhaust Shroud

      B - Valve Handle

      C - Hose Fitting

      D - Shut-Off Valve

      E - Fitting

      F - Angle, 30—40 Degrees

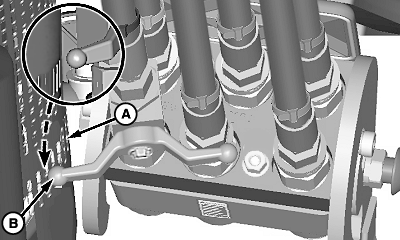

      On some tractors, shut-off valve handle (B) may contact tractor exhaust shroud (A) when valve is closed. If this is the case, reposition of valve is necessary.

      Reposition shut-off valve, if necessary:

      1. Lower loader to ground and shut off tractor engine.
      2. Relieve pressure in hydraulic system: Turn key to ON position. Do not start tractor engine. Move loader control lever in all directions several times. (See your tractor operator’s manual for specific procedures about relieving hydraulic pressure.)
      3. Slightly loosen fittings (C and E).
      4. Turn shut-off valve (D) 30—40 degrees (F), as shown.
      5. Rotate valve handle (B) to verify there is adequate clearance between handle and exhaust shroud (A) and adjacent fittings. Reposition valve, if necessary.
      6. Tighten fittings to specification.

        ItemMeasurementSpecification
        FittingsTorque50 N•m (37 lb.-ft.)



  6. CAUTION:

    W26447
    W26447-UN-14NOV14

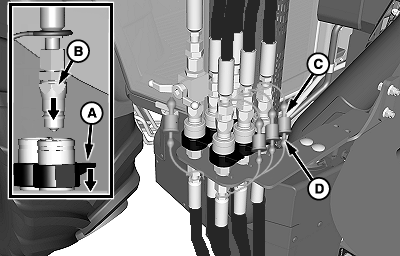

    Mid-Mount Couplers

    A - Coupler, Female

    B - Coupler, Male

    C - Cap

    D - Plug

    Avoid personal injury caused by unexpected loader movement. Hose connections must be correct for loader to respond as expected when control lever is moved.

    IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris. Verify hoses are not twisted or kinked.

    NOTE: Hose connections have color-coded caps and plugs. (If caps and plugs are missing, see Identify Hose Connections in the Service section.)

    Connect hydraulics using mid-mount couplers:

    1. Push and hold collar on female coupler (A).

    2. Match color-coded cap on hose end with same color-coded plug on the coupler. Insert hydraulic hose with male coupler (B) into female coupler.

    3. Release collar on female coupler.

    4. Connect color-coded cap (C) and plug (D) together.

    5. Repeat connections for all couplers.


  7. W23855
    W23855-UN-30SEP13

    Right-Hand Side Shown

    A - Mast Pin (1 each side)

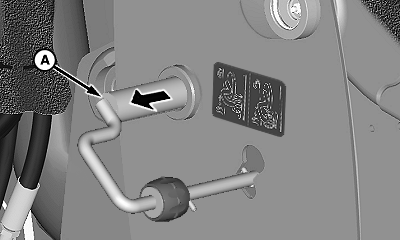

    Make sure mast pins (A) on both sides are fully retracted (pulled out) as shown.


  8. W26299
    W26299-UN-04SEP14

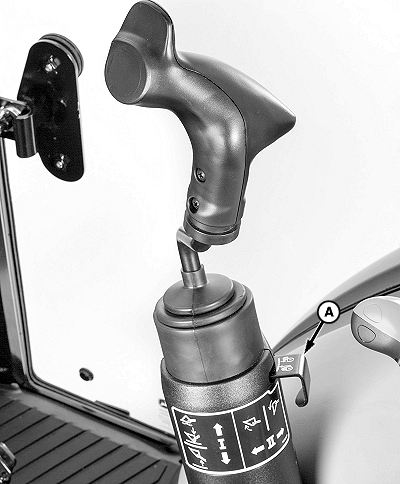

    Cab Tractors

    W26300
    W26300-UN-04SEP14

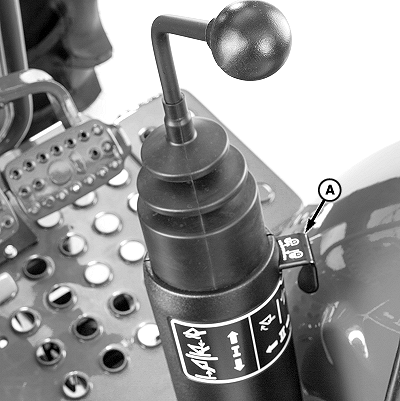

    Open Station Tractors

    A - Lever

    Start tractor engine.


  9. Place transmission in NEUTRAL to allow tractor movement.

  10. Unlock SCV controls with lever (A).

  11. W24091
    W24091-UN-30JUL13

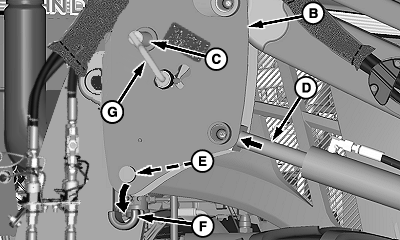

    W26640
    W26640-UN-12MAR15

    Right-Hand Side Shown

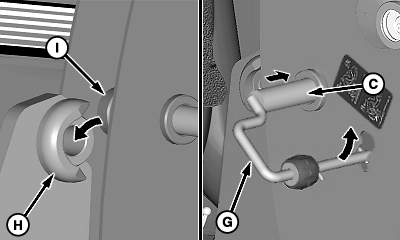

    W24093
    W24093-UN-05FEB14

    W24094
    W24094-UN-05FEB14

    A - Parking Stands

    B - Mast (1 each side)

    C - Mast Pin (1 each side)

    D - Boom Cylinder

    E - Pin (1 each side)

    F - Saddle (1 each side)

    G - Handle (1 each side)

    H - Cradle (2 per side)

    I - Bushing (2 per side)

    J - Knob (1 each side)

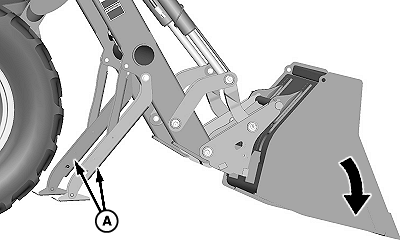

    Slowly dump bucket, and extend boom cylinders (D) until mast (B) lowers, pins (E) rest in saddles (F) on both sides, and parking stands (A) are slightly off the ground.


  12. Retract lift cylinders until mast bushings (I) are seated in cradles (H) on both mounting frames.

  13. Place transmission in PARK and shut off engine.

  14. On both sides of loader install mast pins (C):

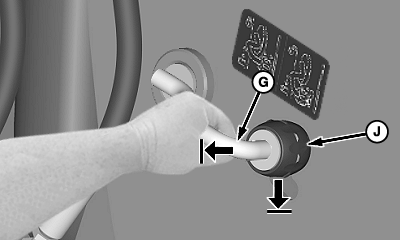

    1. Push in mast pin and rotate handle (G) upward until knob locks into mast.

    2. To make sure knob (J) is securely locked in top hole in mast, pull on pin handle while attempting to rotate downward. (Knob is locked if handle does not move.)

  15. IMPORTANT: To avoid damaging the hoses by excess contact between the hose bundles and the exhaust, pull the hose bundle so that the hoses loop down in between the hose bracket and boom.

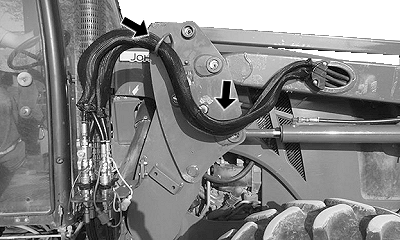

    W26641
    W26641-UN-12MAR15

    Pull the hose bundle so that the hoses loop down in between the hose bracket and boom as shown.


  16. CAUTION:

    W24095
    W24095-UN-30JUL13

    Right-Hand Side Shown

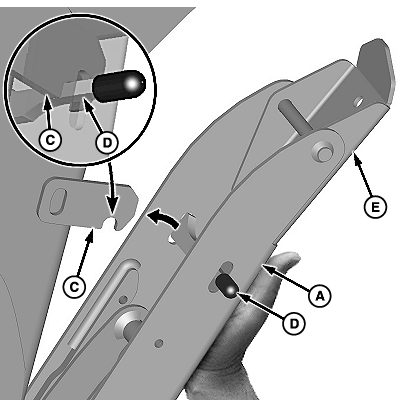

    W24096
    W24096-UN-31JUL13

    A - Parking Stands

    B - Supports

    C - Latch Plate

    D - Latch

    E - Foot Plate

    Avoid personal injury. Keep hands and fingers away from sides of parking stand (A) and foot plate (E) when placing in storage position.

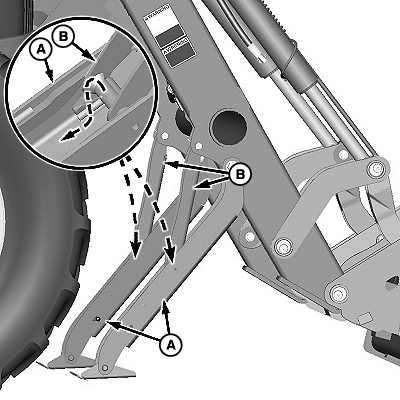

    Store Loader Parking Stands:

    1. Pull out support (B) and slide down parking stand (A).

    2. Lift parking stand and push upward toward bottom of boom.

    3. Using palm of hand, push parking stand inward until latch (D) engages latch plate (C), locking parking stand in place.

    4. Repeat Steps a—c on opposite side.


  17. Check loader operation.

OUO6064,000133D-19-20150312
